Flow (m3/h) 25
pressure(bar) 2 4 6
Power(kW) 4 11 15
RPM 1000 1000 1000
Inlet - Outlet R2 " - DN50 PN16
values are for 220 cst, please contact our company for different viscosity values.

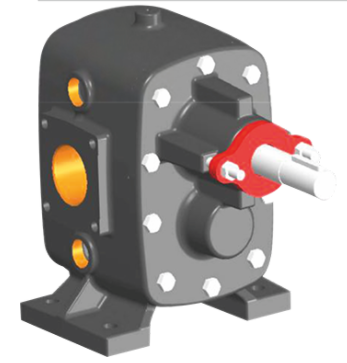

Our heat jacketed pump series is heat jacketed from the cover.
 Our standard connection type is threaded connection. If desired, flange connection can be made optionally.

Usage Areas

  • Chemical Industry
  • Food Industry
  • Paint and Ink Industry
  • Petrochemical Industry
  • Ship and Maritime Industry

Features and Product Benefits

  • Can work in a wide viscosity range
  • Durable construction
  • High capacity with high efficiency
  • The temperature of the transferred fluid can be maintained.
  • Low risk of cavitation

Usage Options

  • Heating cooling jacketed
  • With threaded connection


BODY Cast Iron, Ductile Iron
Stainless Steel 316 - 304
Bronze Gbz14
Soft Packing
Mechanical Seal
Cartex Packing
BED MATERIAL Bronze, Carbon, Teflon
SHAFTS Steel, Stainless steel, Teflon, Kestamide
GEAR Steel, Stainless steel
