| FEATURES | |||
| Flow (m3/h) | 25 | ||
| Pressure(bar) | 8 | 10 | 12 |
| Power(kW) | 15 | 18,5 | 20 |
| RPM | 1000 | 1000 | 1000 |
| Inlet - Outlet | R2 ½" - DN65 PN16 | ||
| Values are for 220 cst, contact our company for different viscosity values. | |||
| Our heat jacketed pump series is heat jacketed from the cover. | |||
Usage Areas
Features and Product Benefits
Usage Options

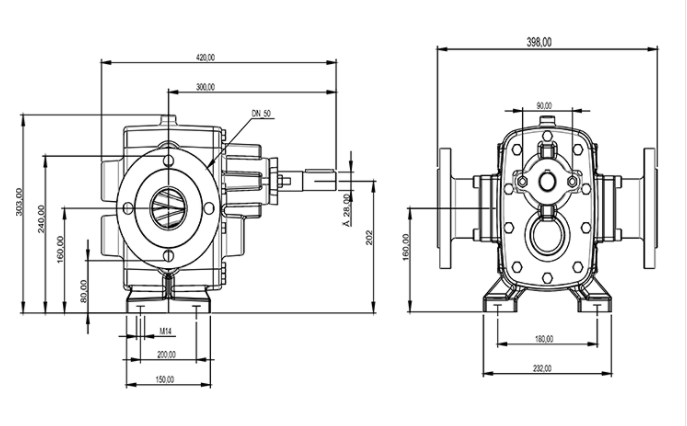

Dimensions
| MATERIALS | |
| BODY | Cast Iron, Ductile Iron |
| Stainless Steel 316 - 304 | |
| Bronze Gbz14 | |
| SHAFT SEALING | Felt |
| Soft Packing | |
| Mechanical Seal | |
| Cartex Packing | |
| BED MATERIAL | Bronze, Carbon, Teflon |
| SHAFTS | Steel, Stainless steel, Teflon, Kestamide |
| GEAR | Steel, Stainless steel |
