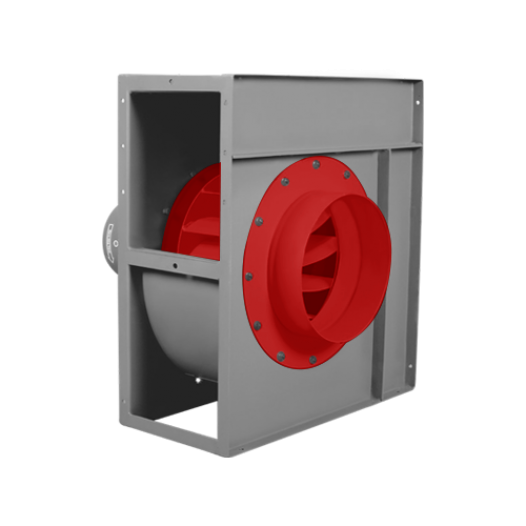

FORWARD CURVED, SPARSE BLADE, DIRECTLY COUPLED, SINGLE SUCTION, SQUARE CASE RADIAL FANS
EFAK designed for low pressure systems, these fans can be used in any facility ventilation. Thanks to the square frame system, the safe can be easily turned to the desired shooting position. It is one of the most economical ventilation solutions.

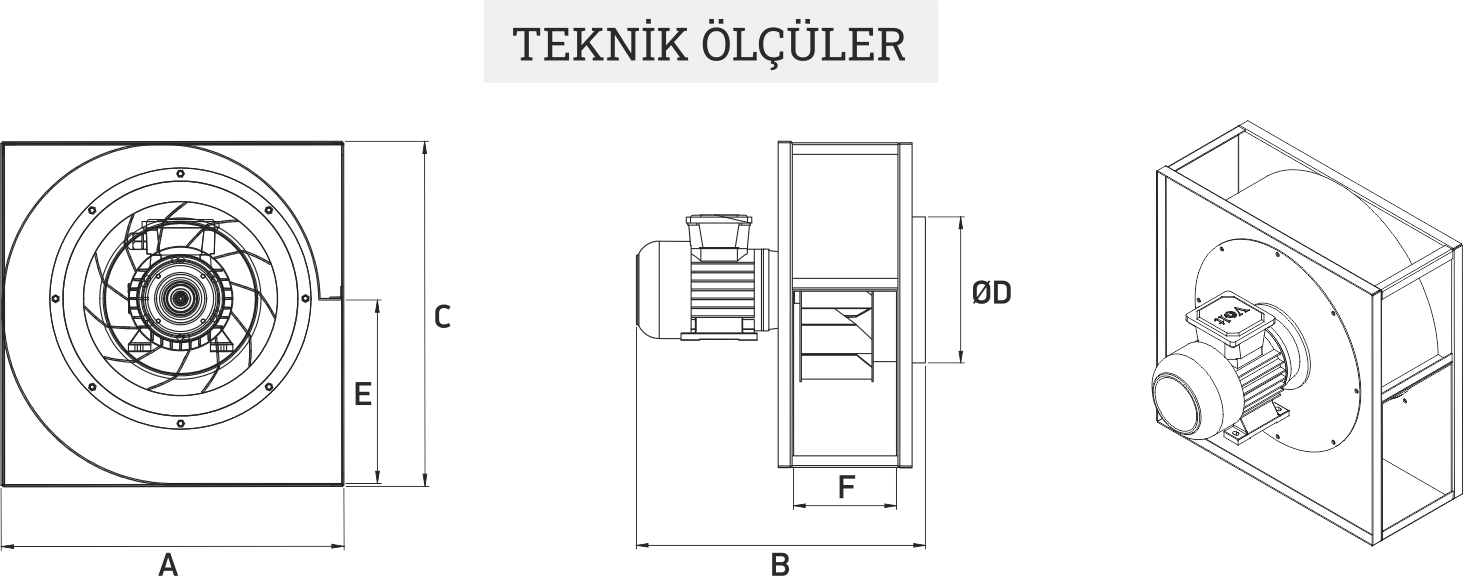

| EBAK | CENTRIFUGAL FANS (Square Case, Forward Curved and Sparse Blades, DIRECT COUPLED Motor, Single Inlet) | DIMENSIONS( mm ) | ||||||||||
| Type / Code | Electric Motor | Air Flow | Pressure Loss | |||||||||
| Volt | Power | RPM | ( Maksimum ) | ( Maksimum ) | ||||||||
| ( V ) | ( HP ) | ( kW ) | ( d/d ) | ( m³/h ) | ( Pa ) | A | B | C | D | E | F | |
| EBAK-0,50-T-4K | 380 | 0,50 | 0,37 | 1.380 | 2.000 | 400 | 470 | 519 | 460 | Ø 200 | 250 | 150 |
| EBAK-1,00-T-4K | 380 | 1,00 | 0,75 | 1.410 | 3.000 | 500 | 520 | 574 | 545 | Ø 200 | 255 | 185 |
| EBAK-1,50-T-4K | 380 | 1,50 | 1,10 | 1.430 | 4.000 | 600 | 566 | 594 | 580 | Ø 246 | 270 | 205 |
| EBAK-2,00-T-4K | 380 | 2,00 | 1,50 | 1.430 | 5.000 | 700 | 619 | 634 | 620 | Ø 260 | 290 | 225 |
| EBAK-3,00-T-4K | 380 | 3,00 | 2,20 | 1.435 | 6.500 | 800 | 660 | 674 | 670 | Ø 300 | 315 | 240 |
| EBAK-4,00-T-4K | 380 | 4,00 | 3,00 | 1.435 | 7.500 | 900 | 681 | 716 | 731 | Ø 350 | 370 | 250 |
| EBAK-5,50-T-4K | 380 | 5,50 | 4,00 | 1.455 | 8.500 | 1.000 | 755 | 756 | 767 | Ø 390 | 400 | 270 |
| EBAK-7,50-T-4K | 380 | 7,50 | 5,50 | 1.465 | 10.500 | 1.100 | 794 | 855 | 825 | Ø 450 | 460 | 330 |
| EBAK-10,0-T-4K | 380 | 10,0 | 7,50 | 1.465 | 12.500 | 1.200 | 876 | 905 | 932 | Ø 450 | 545 | 380 |
