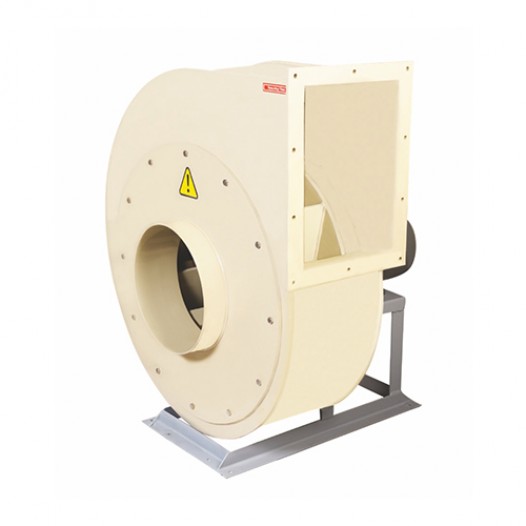

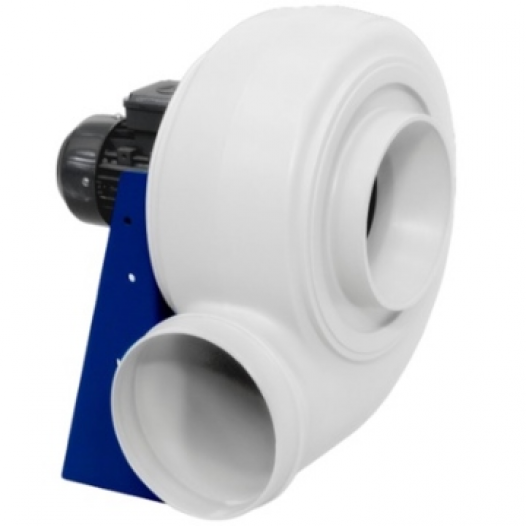

PLASTIC BODY AND BLADES, DIRECT COUPLED, SINGLE SUCTION, RADIAL FANS
PATEX, designed for low and medium pressure systems, are especially used in air systems with acidic and corrosive effects on metal. They are not very suitable for use at high temperatures. They can be used as ex-proof.
| PATEX | CENTRIFUGAL FANS ( PLASTIC Body and Blades, Direct Coupled, Single Suction ) | |||||
| Type / Code | Electric Motor | Air Flow | Pressure Loss | |||
| Volt | Power | RPM | ( Max. ) | ( Max. ) | ||
| ( V ) | ( HP ) | ( kW ) | ( d/d ) | ( m³/h ) | ( Pa ) | |
| PATEX-0,50-T-4K | 380 | 0,50 | 0,37 | 1.380 | 1.500 | 400 |
| PATEX-1,00-T-4K | 380 | 1,00 | 0,75 | 1.410 | 2.500 | 500 |
| PATEX-1,50-T-4K | 380 | 1,50 | 1,10 | 1.430 | 3.500 | 600 |
| PATEX-2,00-T-4K | 380 | 2,00 | 1,50 | 1.430 | 4.500 | 700 |
| PATEX-3,00-T-4K | 380 | 3,00 | 2,20 | 1.435 | 6.000 | 800 |
| PATEX-4,00-T-4K | 380 | 4,00 | 3,00 | 1.435 | 6.500 | 900 |
| PATEX-5,50-T-4K | 380 | 5,50 | 4,00 | 1.455 | 7.500 | 1.000 |
| PATEX-7,50-T-4K | 380 | 7,50 | 5,50 | 1.465 | 9.000 | 1.000 |
| PATEX-10,0-T-4K | 380 | 10,0 | 7,50 | 1.465 | 12.000 | 1.000 |
| PATEX-15,0-T-4K | 380 | 15,0 | 11,0 | 1.470 | 15.000 | 1.000 |
| PATEX-20,0-T-4K | 380 | 20,0 | 15,0 | 1.470 | 20.000 | 1.000 |
