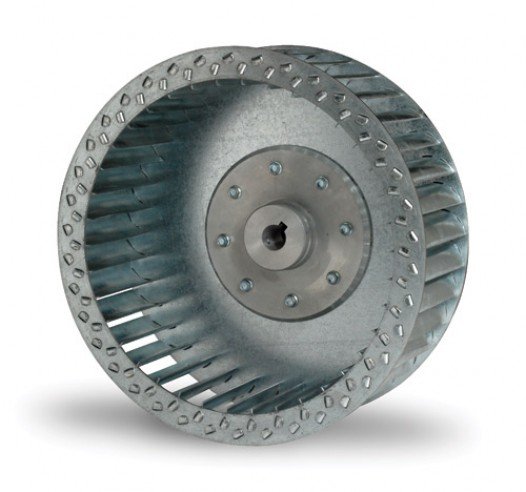

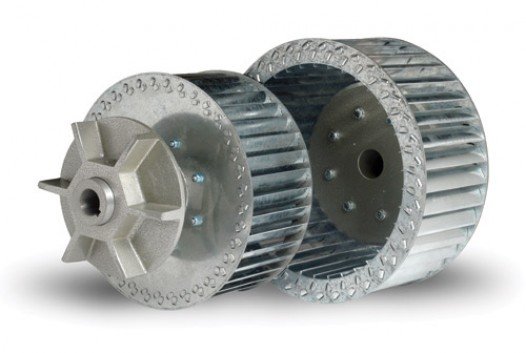

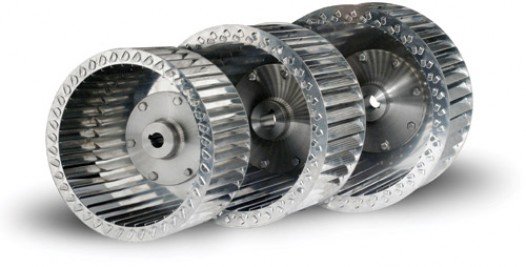

Dense-Bladed Radial Impellers;
* Since it is highly efficient, it is used in burners, aspirators, circulation fans and is produced in more than 50 different sizes. It is made in special productions to meet the needs of various sectors.
* Rust-proof aluminum injection die-cast hubs and special hubs are used
* Made of 1-2 mm galvanized sheet, mirror circle, air blades
* After the rotor (fan) production, the dynamic and static balance is taken and the vibration and sound are minimized.
| PRODUCT CODE | SHAFT | NUMBER OF BLADES | BOX QTY |
| ERF-FAN 100-35-40-50-60 | 9/11 | 23 | 20 |
| ERF-FAN 120-50-60-70-85-90 | 9/11 | 23 | 20 |
| ERF-FAN 130-50-60-70-85-90 | 11/14 | 30-32-34 | 20 |
| ERF-FAN 140-50-60-70-85-90 | 11/14 | 30-32-40 | 20 |
| ERF-FAN 146-50-60-70-85-90 | 11/14 | 32-35 | 20 |
| ERF-FAN 160-50-60-70-85-90 | 14 | 32-36 | 18 |
| ERF-FAN 180-50-60-70-85-90 | 14 | 32-36 | 16 |
| ERF-FAN 200-90-102 | 19 | 40 | 12 |
| ERF-FAN 215-90-102 | 19 | 40 | 12 |
| ERF-FAN 225-90-102 | 19 | 42 | 12 |
| ERF-FAN 250-90 | 24 | 38 | 10 |
| ERF-FAN 250-112 | 24 | 38 | 10 |
| ERF-FAN 250-118 | 24 | 38 | 10 |
| ERF-FAN 268-112 | 24 | 38 | 10 |
| ERF-FAN 268-118 | 24 | 38 | 10 |
| ERF-FAN 280-112 | 28 | 38 | 8 |
| ERF-FAN 280-122 | 28 | 38 | 8 |
| ERF-FAN 300-112 | 28 | 38 | 8 |
| ERF-FAN 300-122 | 28 | 38 | 8 |
| ERF-FAN 315-112 | 28 | 38 | 6 |
| ERF-FAN 315-122 | 28 | 38 | 6 |
| ERF-FAN 350-112 | 28 | 38 | 6 |
| ERF-FAN 350-112 | 28 | 38 | 6 |
| ERF-FAN 400-122 | 42 | 38 | 1 |
| ERF-FAN 450-122 | 42 | 38 | 1 |
| ERF-FAN 500-122 | 42 | 38 | 1 |
| PRODUCT CODE | SHAFT | NUMBER OF BLADES | BOX QTY |
| ERF-FAN 200-35 | 12/13/14 | 40 | 10 |
| ERF-FAN 215-35 | 12/13/14 | 40 | 10 |
| ERF-FAN 225-35 | 12/13/14 | 42 | 10 |
| ERF-FAN 250-35 | 12/13/14 | 38 | 10 |
| TYPE | b1 | b2 | b3 | h1 | h2 | d1 | d2 | d3 | d4 | d5 | a | N |
| 120x50 | 52 | 19 | 8 | 50 | 65 | 50 | 86 | 120 | 100 | 6 | 30° | 22 |
| 120x60 | 62 | 19 | 8 | 60 | 75 | 50 | 86 | 120 | 100 | 6 | 30° | 22 |
| 120x70 | 72 | 19 | 8 | 70 | 85 | 50 | 86 | 120 | 100 | 6 | 30° | 22 |
| 120x85 | 87 | 19 | 8 | 85 | 100 | 50 | 86 | 120 | 100 | 6 | 30° | 22 |
| 120x90 | 92 | 19 | 8 | 60 | 105 | 50 | 86 | 120 | 100 | 6 | 30° | 22 |
| 140x50 | 52 | 19 | 8 | 50 | 65 | 50 | 107 | 140 | 120 | 6 | 30° | 22 |
| 140x60 | 62 | 19 | 8 | 60 | 75 | 50 | 107 | 140 | 120 | 6 | 30° | 22 |
| 140x70 | 72 | 19 | 8 | 70 | 85 | 50 | 107 | 140 | 120 | 6 | 30° | 22 |
| 140x85 | 87 | 19 | 8 | 85 | 100 | 50 | 107 | 140 | 120 | 6 | 30° | 22 |
| 140x90 | 92 | 19 | 8 | 90 | 105 | 50 | 107 | 140 | 120 | 6 | 30° | 22 |
| 160x50 | 52 | 19 | 8 | 50 | 65 | 50 | 125 | 160 | 140 | 6 | 30° | 22 |
| 160x60 | 62 | 19 | 8 | 60 | 75 | 50 | 125 | 160 | 140 | 6 | 30° | 22 |
| 160x70 | 72 | 19 | 8 | 70 | 85 | 50 | 125 | 160 | 140 | 6 | 30° | 22 |
| 160x85 | 87 | 19 | 8 | 85 | 100 | 50 | 125 | 160 | 140 | 6 | 30° | 22 |
| 160x90 | 92 | 19 | 8 | 90 | 105 | 50 | 125 | 160 | 140 | 6 | 30° | 22 |
| 180x50 | 52 | 19 | 8 | 50 | 65 | 50 | 145 | 180 | 160 | 6 | 30° | 22 |
| 180x60 | 62 | 19 | 8 | 60 | 75 | 50 | 145 | 180 | 160 | 6 | 30° | 22 |
| 180x70 | 72 | 19 | 8 | 70 | 85 | 50 | 145 | 180 | 160 | 6 | 30° | 22 |
| 180x85 | 87 | 19 | 8 | 85 | 100 | 50 | 145 | 180 | 160 | 6 | 30° | 22 |
| 180x90 | 92 | 19 | 8 | 90 | 105 | 50 | 145 | 180 | 160 | 6 | 30° | 22 |
| 225x90 | 92 | 24 | 11.50 | 90 | 110 | 70 | 180 | 225 | 200 | 6 | 30° | 28 |
| 225x102 | 104 | 24 | 11.50 | 102 | 120 | 70 | 180 | 225 | 200 | 6 | 30° | 28 |
| 225x112 | 114 | 24 | 11.50 | 112 | 130 | 70 | 195 | 225 | 200 | 6 | 30° | 28 |
| 250x90 | 92 | 24 | 11.50 | 90 | 110 | 90 | 180 | 250 | 220 | 6 | 30° | 28 |
| 250x102 | 104 | 24 | 11.50 | 102 | 120 | 90 | 180 | 250 | 220 | 6 | 30° | 28 |
| 250x112 | 114 | 24 | 11.50 | 112 | 130 | 90 | 195 | 250 | 220 | 6 | 30° | 34 |
| 250x118 | 120 | 30 | 11.50 | 118 | 135 | 90 | 200 | 250 | 220 | 6 | 30° | 34 |
| 268x112 | 114 | 30 | 11.50 | 112 | 130 | 90 | 210 | 268 | 240 | 6 | 30° | 34 |
| 268x118 | 120 | 30 | 11.50 | 118 | 135 | 90 | 220 | 268 | 240 | 6 | 30° | 34 |
| 280x112 | 104 | 24 | 12 | 112 | 130 | 90 | 205 | 280 | 265 | 6 | 30° | 34 |
| 280x122 | 120 | 30 | 12 | 122 | 135 | 90 | 205 | 280 | 265 | 6 | 30° | 34 |
| 300x112 | 115 | 30 | 12 | 112 | 130 | 110 | 325 | 300 | 275 | 8 | 30° | 38 |
| 300x122 | 121 | 31 | 12 | 122 | 135 | 110 | 325 | 300 | 275 | 8 | 30° | 38 |
| 315x112 | 114 | 31 | 13 | 112 | 137 | 110 | 340 | 315 | 290 | 8 | 30° | 38 |
| 315x122 | 130 | 32 | 13 | 122 | 137 | 110 | 340 | 315 | 290 | 8 | 30° | 38 |
| 350x112 | 116 | 37 | 10/10 | 112 | 124 | 110 | 260 | 350 | 322 | 8 | 30° | 38 |
| 350x122 | 126 | 37 | 10/10 | 122 | 134 | 110 | 260 | 350 | 322 | 8 | 30° | 38 |
| 400x122 | 138 | 37 | 24 | 122 | 134 | 110 | 310 | 400 | 372 | 8 | 30° | 38 |
| 400x112 | 128 | 37 | 24 | 112 | 124 | 110 | 310 | 400 | 372 | 8 | 30° | 38 |
| 450x112 | 128 | 37 | 24 | 112 | 124 | 110 | 360 | 450 | 422 | 8 | 30° | 38 |
