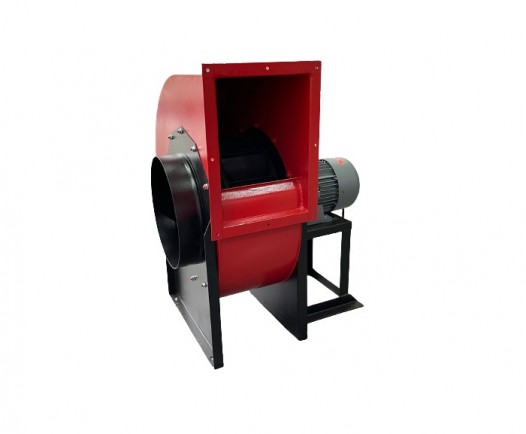

FORWARD CURVED DIRECTLY COUPLED, SINGLE SUCTION, RADIAL FAN
SFAB designed for low pressure systems can be used in all kinds of facility ventilation. It is one of the most economical ventilation solutions.
| Type / Code | Electric Motor | Air Flow | Pressure Loss | DIMENSIONS ( mm ) | ||||||||
| Volt | Power | RPM | ( Max.) | ( Max. ) | ||||||||
| ( V ) | ( HP ) | ( kW ) | ( d/d ) | ( m³/h ) | ( Pa ) | A | B | C | D | E | F | |
| SFAB-T4-0,37 | 380 | 0,50 | 0,37 | 1.380 | 2.000 | 400 | 470 | 519 | 583 | Ø 200 | 250 | 150 |
| SFAB-T4-0,75 | 380 | 1,00 | 0,75 | 1.410 | 3.000 | 500 | 520 | 574 | 619 | Ø 200 | 255 | 185 |
| SFAB-T4-1,10 | 380 | 1,50 | 1,10 | 1.430 | 4.000 | 600 | 566 | 594 | 725 | Ø 246 | 270 | 205 |
| SFAB-T4-1,50 | 380 | 2,00 | 1,50 | 1.430 | 5.000 | 700 | 619 | 634 | 688 | Ø 260 | 290 | 225 |
| SFAB-T4-2,20 | 380 | 3,00 | 2,20 | 1.435 | 6.500 | 800 | 660 | 674 | 912 | Ø 300 | 315 | 240 |
| SFAB-T4-3,00 | 380 | 4,00 | 3,00 | 1.435 | 7.500 | 900 | 681 | 716 | 907 | Ø 300 | 370 | 250 |
| SFAB-T4-4,00 | 380 | 5,50 | 4,00 | 1.455 | 8.500 | 1.000 | 755 | 756 | 891 | Ø 320 | 400 | 270 |
| SFAB-T4-5,50 | 380 | 7,50 | 5,50 | 1.465 | 10.500 | 1.100 | 794 | 855 | 1.017 | Ø 350 | 460 | 330 |
| SFAB-T4-7,50 | 380 | 10,0 | 7,50 | 1.465 | 12.500 | 1.200 | 876 | 905 | 1.041 | Ø 350 | 545 | 380 |
