PRODUCT DESCRIPTION

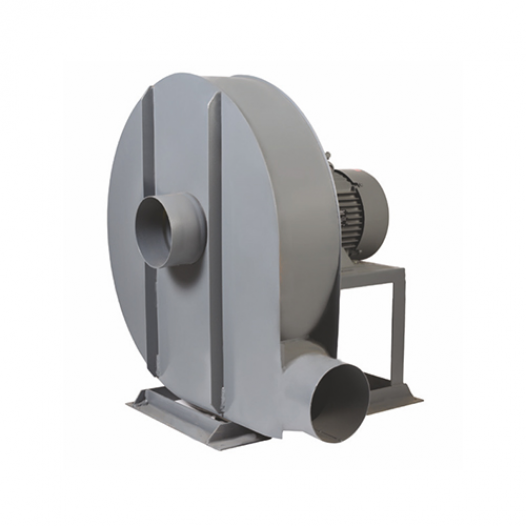

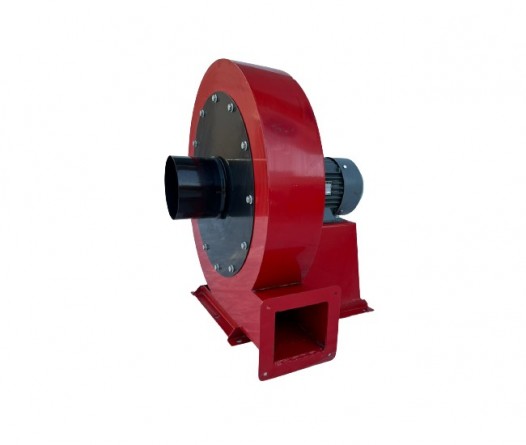

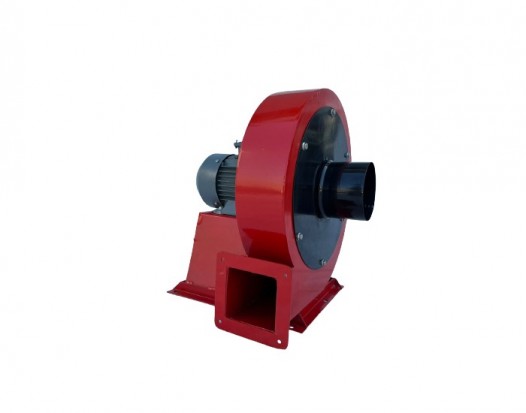

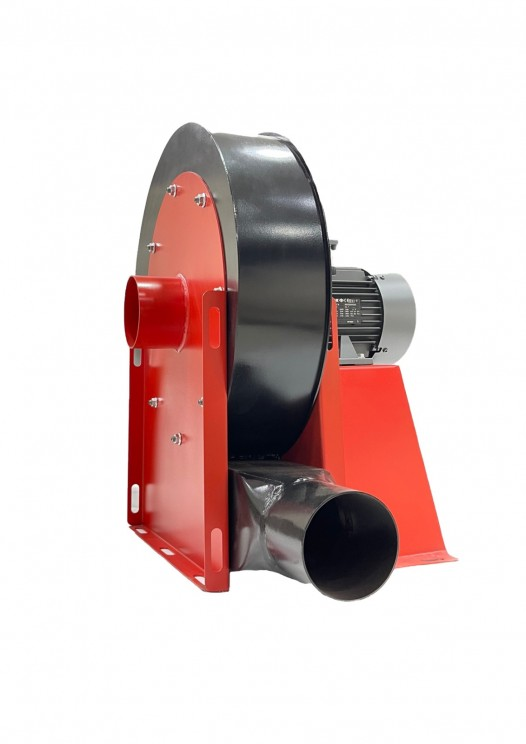

DIRECT COUPLED, MEDIUM PRESSURE SINGLE SUCTION, RADIAL FAN

SROB, works with high performance in medium and high pressure ventilation systems. They can also serve as material handling fans. In addition to the standard closed propeller, they can also be produced with open blade propellers. Thanks to its screw-mounted structure, the direction of the shot mouth can be easily turned to the desired direction.

Type / Code

Electric Motor

Air Flow Pressure Loss

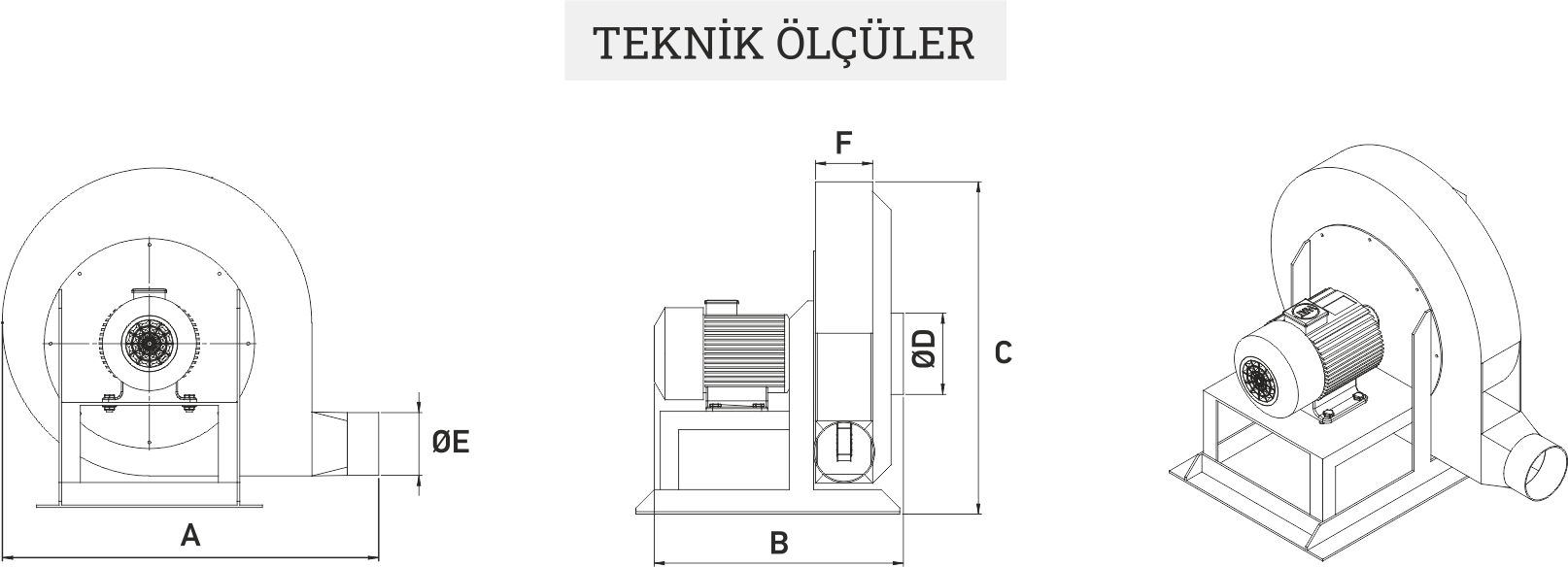

DIMENSIONS( mm )

Volt

Power

RPM

( Max. )

( Max.)

( V )

( HP )

( kW )

( d/d )

( m³/h )

( Pa )

A

B

C

D

F

SROB-T2-0,37

380

0,50

0,37

2.850

1.000

900

435

365

425

Ø 100

Ø 100

SROB-T2-0,75

380

1,00

0,75

2.860

1.100

1.400

555

395

535

Ø 120

Ø 100

SROB-T2-1,10

380

1,50

1,10

2.900

1.400

2.000

600

395

580

Ø 120

Ø 100

SROB-T2-1,50

380

2,00

1,50

2.900

1.600

2.400

645

405

650

Ø 130

Ø 120

SROB-T2-2,20

380

3,00

2,20

2.900

2.100

3.000

670

440

700

Ø 130

Ø 120

SROB-T2-3,00

380

4,00

3,00

2.900

2.300

3.500

720

510

720

Ø 140

Ø 140

SROB-T2-4,00

380

5,50

4,00

2.910

2.600

4.000

750

580

770

Ø 150

Ø 150

SROB-T2-5,50

380

7,50

5,50

2.930

3.200

5.000

870

630

835

Ø 195

Ø 170

SROB-T2-7,50

380

10,0

7,50

2.910

4.200

6.000

920

630

880

Ø 200

Ø 170
