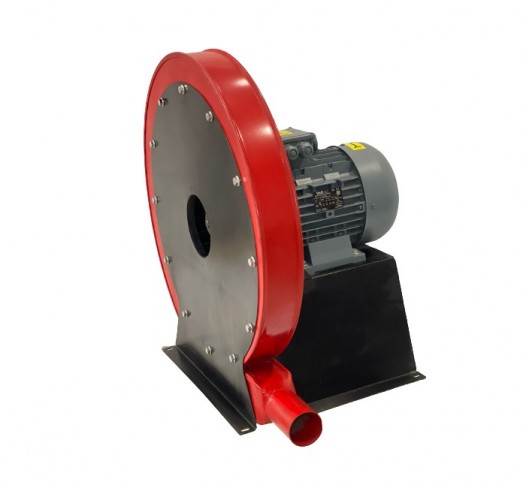

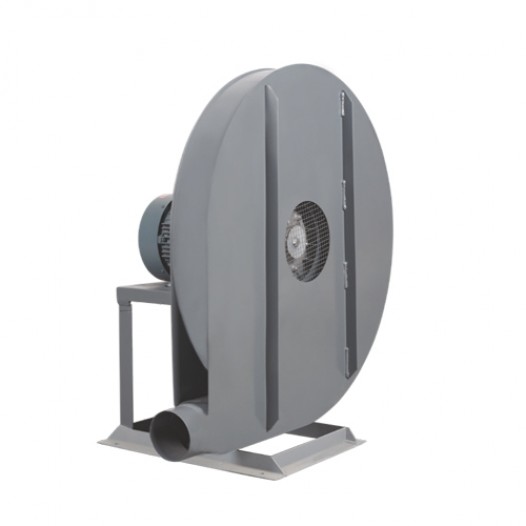

DIRECT COUPLED, HIGH PRESSURE SINGLE SUCTION, RADIAL FAN
SRYB, also called blowers can overcome high pressure losses despite low air flow rates. Thanks to its screw-mounted structure, the direction of the shot mouth can be easily turned to the desired direction.
| Type / Code | Electric Motor | Air Flow | Pressure Loss | DIMENSIONS ( mm ) | |||||||
| Volt | Power | RPM | ( Max. ) | ( Max. ) | |||||||

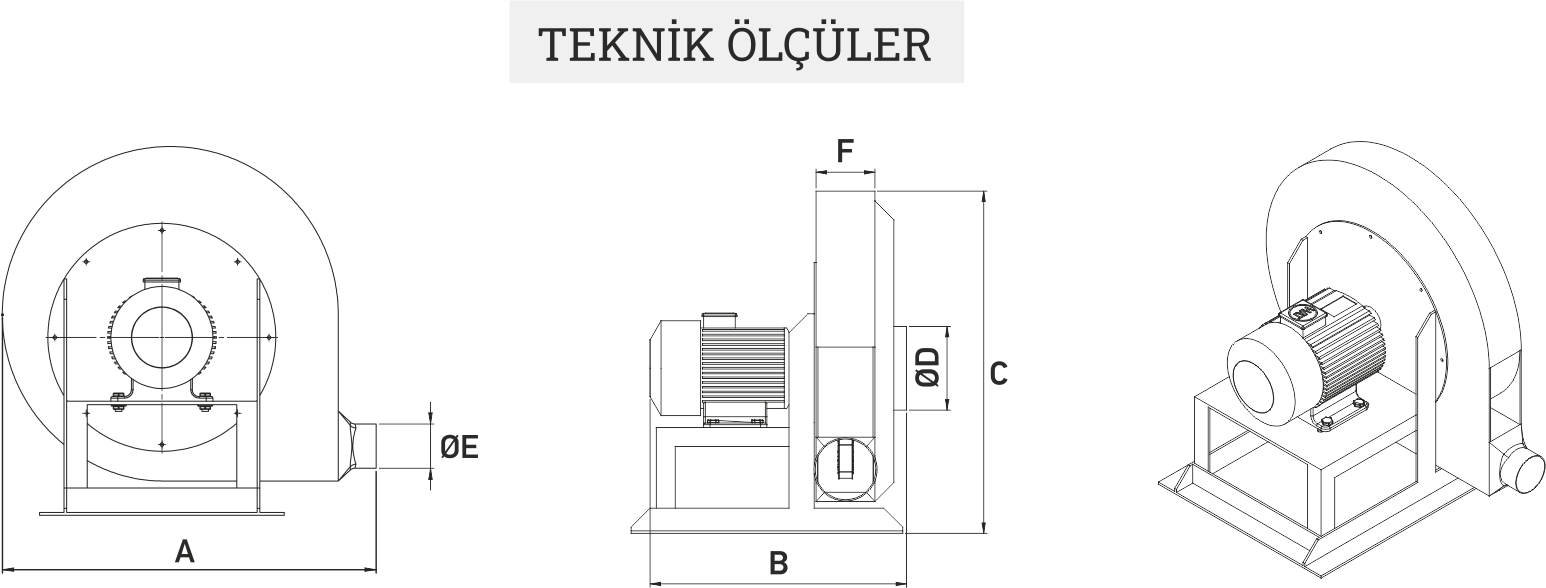

| ( V ) | ( HP ) | ( kW ) | ( d/d ) | ( m³/h ) | ( Pa ) | A | B | C | D | F | |
| SRYB-1,00-T-2K | 380 | 1,00 | 0,75 | 2.860 | 450 | 3.000 | 575 | 355 | 550 | Ø 120 | Ø 65 |
| SRYB-1,50-T-2K | 380 | 1,50 | 1,10 | 2.900 | 550 | 4.000 | 645 | 365 | 630 | Ø 120 | Ø 70 |
| SRYB-2,00-T-2K | 380 | 2,00 | 1,50 | 2.900 | 600 | 5.000 | 660 | 350 | 650 | Ø 125 | Ø 80 |
| SRYB-3,00-T-2K | 380 | 3,00 | 2,20 | 2.900 | 700 | 6.000 | 680 | 390 | 690 | Ø 130 | Ø 80 |
| SRYB-4,00-T-2K | 380 | 4,00 | 3,00 | 2.900 | 1.000 | 7.200 | 760 | 450 | 730 | Ø 140 | Ø 80 |
| SRYB-5,50-T-2K | 380 | 5,50 | 4,00 | 2.910 | 1.250 | 8.000 | 855 | 500 | 845 | Ø 170 | Ø 100 |
| SRYB-7,50-T-2K | 380 | 7,50 | 5,50 | 2.930 | 1.500 | 9.000 | 870 | 565 | 880 | Ø 170 | Ø 100 |
| SRYB-10,0-T-2K | 380 | 10,0 | 7,50 | 2.910 | 1.700 | 10.000 | 855 | 560 | 880 | Ø 180 | Ø 100 |
| SRYB-0,50-T-2K | 380 | 0,50 | 0,37 | 2.850 | 350 | 2.500 | 520 | 320 | 510 | Ø 100 | Ø 65 |
