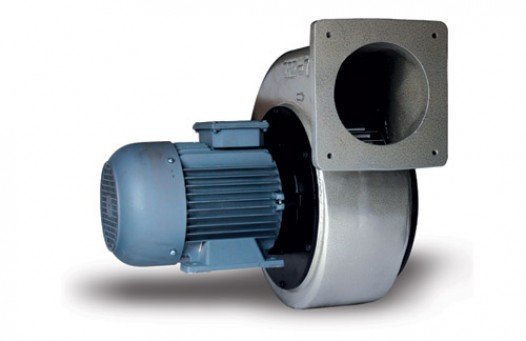

PRODUCT DESCRIPTION

USAGE AREAS

  • It is used in the heating industry for burning solid and liquid fuels in boilers and providing secondary air in a controlled manner.
  • In the ventilation of closed environments
  • In industrial machinery belonging to the jewelery sector
  • in the textile industry
  • In mines and mushroom farms
  • In plastic injection machines
  • In the combustion air supply of gas, diesel burners
  • In humid and humid environments
  • In the greenhouse industry
  • In chicken coops
  • Used in many areas of the manufacturing industry

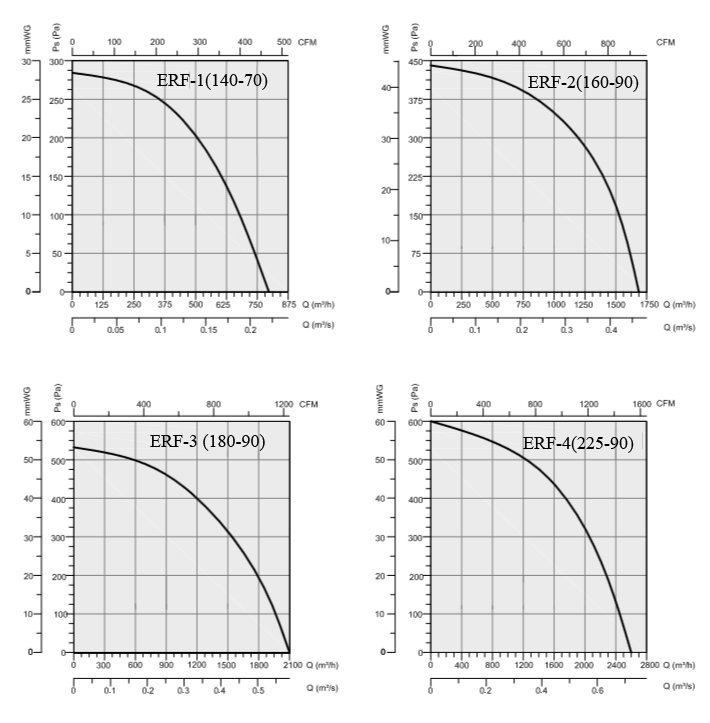

Capacity Dimensions Table

PRODUCT CODE

KW

HP

V

D/D

AIR FLOW

MM/SS

KG

ERF-1  140-70

0.25

1/3

380/220

2900

750/650

26

9

ERF-2  160-90

0.37

1/2

380/220

2900

1650/1600

35

11

ERF-3  180-90

0.55

3/4

380/220

2900

2000/1900

50

12

ERF-4  225-90

0.75

1

380/220

2900

2500/2400

60

18

ERF-4  225- 102

1.1

1.5

380/220

2900

3000/2900

60

19

ERF-5  250-112

1.5

2

380/220

2900

3500/3400

70

25

ERF-5  250-118

2.2

3

380/220

2900

4000/3900

90

27

ERF-6  268-112

2.2

3

380/220

2900

4500/4400

120

31

ERF-6  268- 118

3

4

380/220

2900

5000

150

33

ERF-7  300-112

4

5.5

380

2900

6000

170

43

ERF-7  300-122

5.5

7.5

380

2900

7000

210

46

ERF-8  315-112

5.5

7.5

380

2900

8000

230

48

ERF-8  315-122

7.5

10

380

2900

10000

260

59

  1. Motor
  2. Motor Flange
  3. Centrifugal Body
  4. Radial Impeller
  5. Aluminum Suction Plate
  6. Suction Wire
  7. Suction Flange

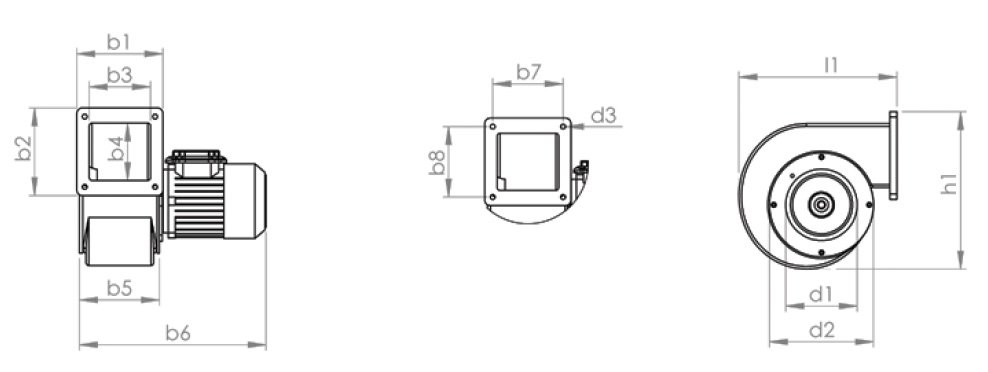

Capacity Dimensions Table

TİP

b1

b2

b3

b4

b5

b6

b7

b8

I1

h1

d1

d2

d3

ERF-1

133

125

88

65

127

310

110.5

99.5

230

240

111.5

173

7

ERF-2

155

163

114

108.5

148

360

130

129

285

280

155

195

9

ERF-3

160

165

117

108.5

157

360

130

130

310

300

150

210

9

ERF-4

187.5

163

127

100

168

390

155

126

370

380

190

268

9

ERF-5

200

205

Q155

Q 155

185

435

165

165

400

435

205

285

9

ERF-6

200

205

Q 155

Q 155

195

465

165

165

405

440

215

300

9

ERF-7

240

250

Q 170

Q 170

200

555

200

205

480

510

250

350

10

ERF-8

240

250

Q 170

Q 170

200

555

200

205

490

510

240

350

10
