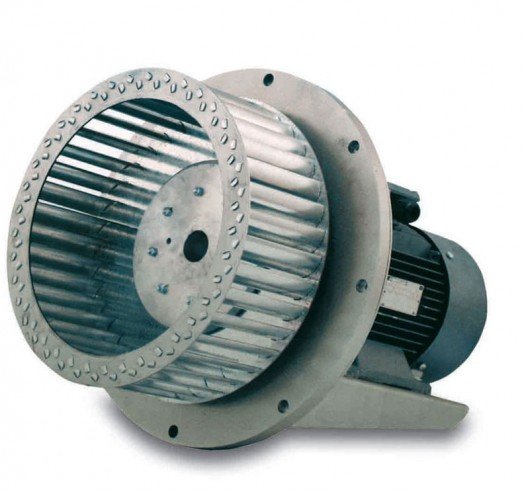

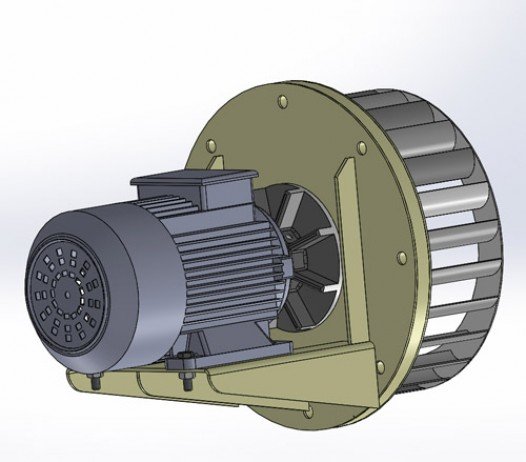

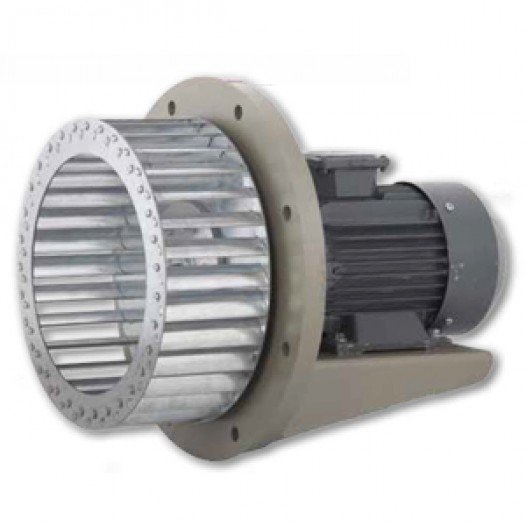

* It is manufactured from 5 types of chassis body and high efficiency is provided by using radial fans with dense blades.
* Bread ovens
* In static paint ovens
* It is used in industrial facilities where heat transfers will be made.
| BASE (FRAME) | FAN DIMENSIONS | KW | RPM | SHAFT | AIR FLOW | MM/SS |
| 300 | 250-112 | 0.75 | 1400 | 19 | 3300 | 55 |
| 300 | 250-118 | 0.75 | 1400 | 19 | 3500 | 55 |
| 415 | 330-112 | 1.5 | 1400 | 24 | 4500 | 70 |
| 415 | 330-122 | 1.5 | 1400 | 24 | 5000 | 70 |
| 430 | 360-112 | 2.2 | 1400 | 28 | 6800 | 80 |
| 430 | 360-122 | 3 | 1400 | 28 | 7000 | 80 |
| 435 | 360-112 | 2.2 | 1400 | 28 | 6800 | 80 |
| 435 | 360-122 | 3 | 1400 | 28 | 7000 | 80 |
| 460 | 400-112 | 2.2 | 1400 | 28 | 7400 | 90 |
| 460 | 400-122 | 3 | 1400 | 28 | 7600 | 90 |
| 490 | 420-112 | 3 | 1400 | 28 | 8000 | 100 |
| 490 | 420-122 | 3 | 1400 | 28 | 8200 | 100 |
| 625 | 500-112 | 3 | 1400 | 28 | 8600 | 100 |
| 625 | 500-122 | 3 | 1400 | 28 | 8800 | 100 |
| 625 | MATADOR | 3 | 1400 | 28 | 8800 | 80 |

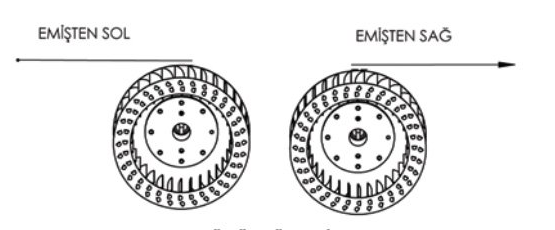

FAN ROTATING DIRECTIONS

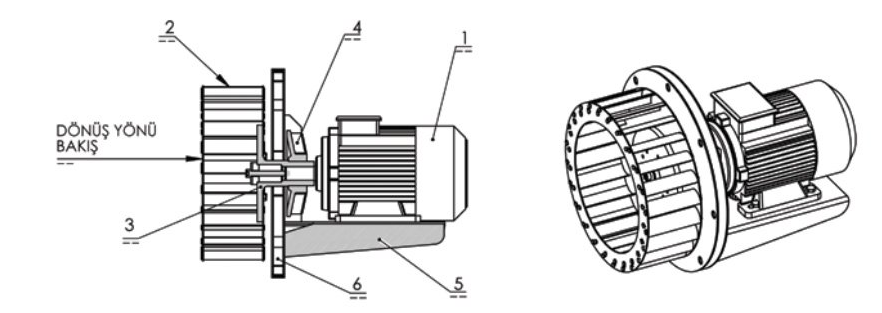

" Chassis body is shaped in cassette form and heat insulation is provided by placing pressed plate glass wool between it. Radial fans of the circulation fan group are manufactured from 1.2 - 2 mm galvanized sheet. With the applied thermal insulation, it allows convenient operation in high temperature and humid environments. "
| CAPACITY SIZE TABLE | ||||||||||
| BASE (FRAME) DIMENSIONS | FAN DIMENSIONS | PEDESTAL BIND. HOLE CENTER. DIMENSIONS (mm) | NUMBER OF PEDESTAL CONNECTION HOLES | NUMBER OF PEDESTAL CONNECTION HOLES | ELECTRIC MOTOR | Max. Air Flow | Max. Pressure | |||
| VOLT | POWER | SPEED | ||||||||
| KW | HP | V | RPM | M3/H | MM/SS | |||||
| ERF / 303 | 250 - 112 | 280 | 8 | 12 | 0,75 | 1 | 380/220 | 1400 | 3300 | 55 |
| ERF / 303 | 250 - 118 | 280 | 8 | 12 | 0,75 | 1 | 380/221 | 1400 | 3500 | 55 |
| ERF / 415 | 330 - 112 | 370 | 8 | 16 | 1,5 | 2 | 380/222 | 1400 | 4500 | 70 |
| ERF / 415 | 330 - 122 | 370 | 8 | 16 | 1,5 | 2 | 380/223 | 1400 | 5000 | 70 |
| ERF / 430 | 360 - 112 | 400 | 8 | 16 | 2,2 | 3 | 380/224 | 1400 | 6800 | 80 |
| ERF / 430 | 360 - 112 | 400 | 8 | 16 | 3 | 4 | 380/225 | 1400 | 7000 | 80 |
| ERF / 460 | 400 - 112 | 434 | 8 | 16 | 2,2 | 3 | 380/226 | 1400 | 7400 | 90 |
| ERF / 460 | 400 - 112 | 434 | 8 | 16 | 3 | 4 | 380/227 | 1400 | 7600 | 90 |
| ERF / 490 | 420 - 112 | 465 | 8 | 16 | 3 | 4 | 380/228 | 1400 | 8000 | 100 |
| ERF / 490 | 420 - 122 | 465 | 8 | 16 | 3 | 4 | 380/229 | 1400 | 8200 | 100 |
| ERF / 625 | 500 - 112 | 600 | 8 | 16 | 3 | 4 | 380/230 | 1400 | 8600 | 100 |
| ERF / 625 | 500 - 122 | 600 | 8 | 16 | 3 | 4 | 380/231 | 1400 | 8800 | 100 |
