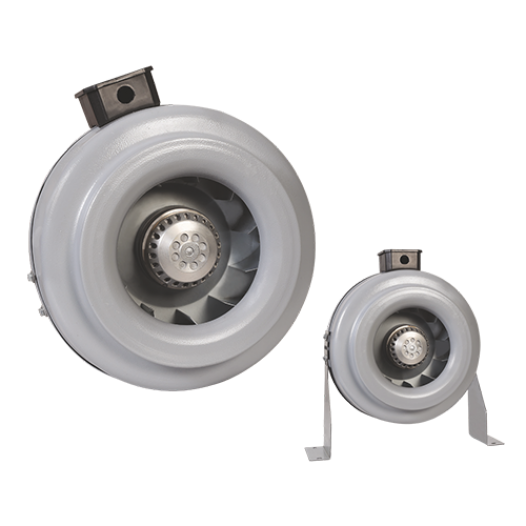

BACK CURVED AND SQUARE BLADE OUTER ROTOR MOTOR CIRCULAR SECTION DUCT FAN
Working with high efficiency and low noise level, these fans are extremely practical with their strong air flow and easy installation. It is suitable for canal diameter in both mouths. They have the ability to work in any mounting position.

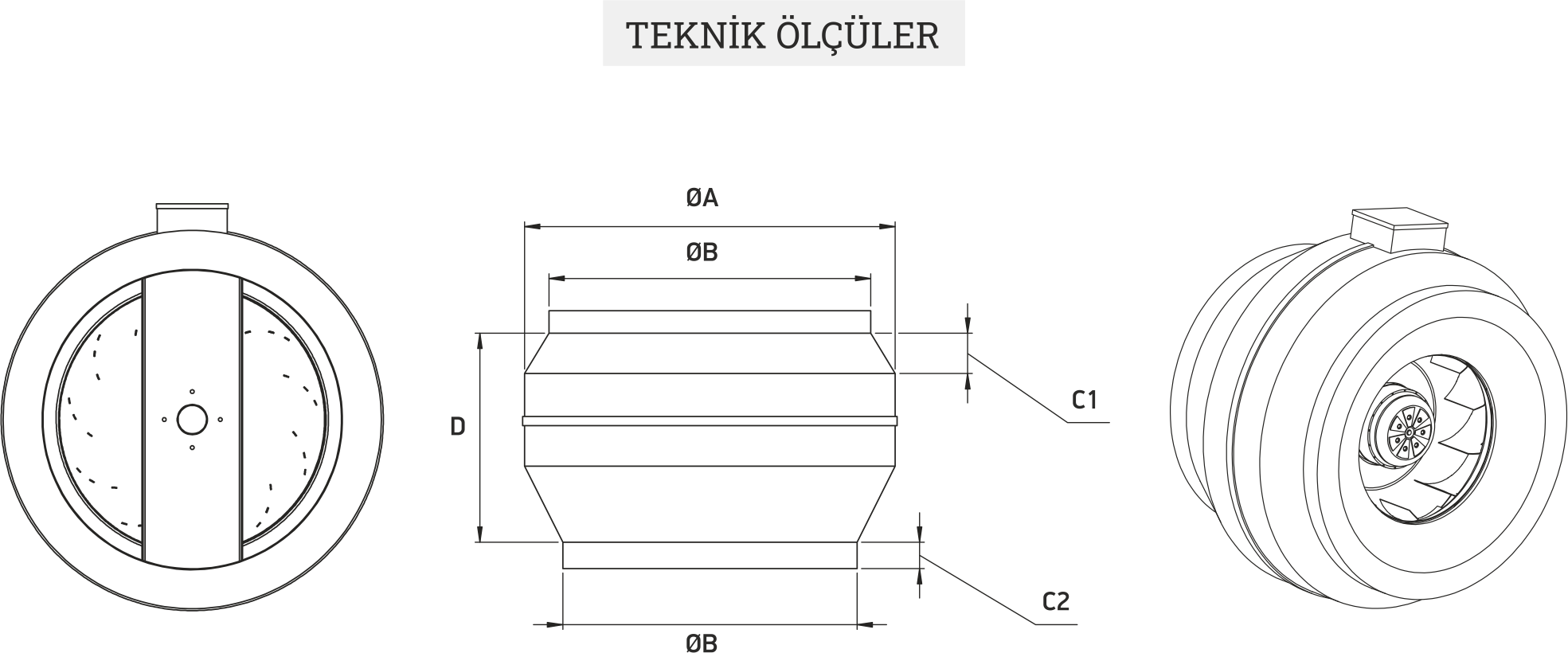

| Type / Code | Electric Motor | Air Flow | CAPACITY TABLE ( m³/h ) | DIMENSIONS ( mm ) | ||||||||||||
| Volt | Power | RPM | ( Max ) | |||||||||||||
| ( V ) | ( W ) | ( d/d ) | ( m³/h ) | 0 Pa | 50 Pa | 100 Pa | 150 Pa | 200 Pa | 250 Pa | 300 Pa | 400 Pa | 500 Pa | A | B | D | |
| EYKF-100-M-2K | 220 | 60 | 2.300 | 240 | 240 | 200 | 170 | 135 | 90 | 50 | 10 |
|
| 245 | 97 | 197 |
| EYKF-125-M-2K | 220 | 85 | 2.325 | 315 | 315 | 260 | 215 | 175 | 115 | 65 | 10 |
|
| 245 | 122 | 188 |
| EYKF-150-M-2K | 220 | 90 | 2.385 | 420 | 420 | 370 | 310 | 210 | 185 | 100 | 30 |
|
| 272 | 147 | 192 |
| EYKF-160-M-2K | 220 | 95 | 2.400 | 440 | 440 | 350 | 290 | 240 | 160 | 95 | 20 |
|
| 272 | 157 | 192 |
| EYKF-200-M-2K | 220 | 125 | 2.550 | 870 | 870 | 780 | 715 | 620 | 530 | 435 | 335 | 115 |
| 330 | 196 | 230 |
| EYKF-250-M-2K | 220 | 145 | 2.635 | 1.150 | 1.150 | 1.050 | 980 | 900 | 820 | 740 | 635 | 410 | 180 | 330 | 247 | 227 |
| EYKF-315-M-2K | 220 | 210 | 2.660 | 1.750 | 1.750 | 1.650 | 1.530 | 1.450 | 1.300 | 1.200 | 1.080 | 860 | 600 | 400 | 313 | 285 |
