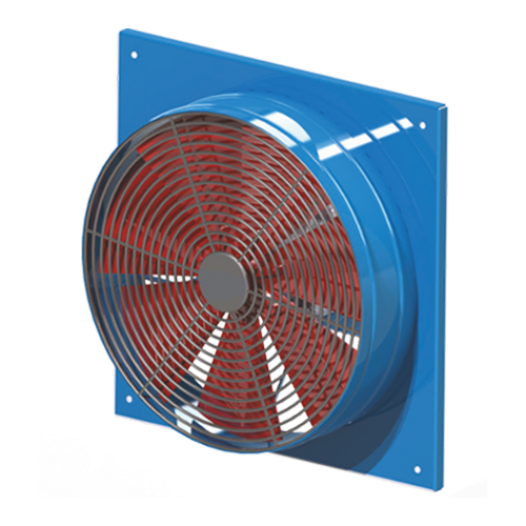

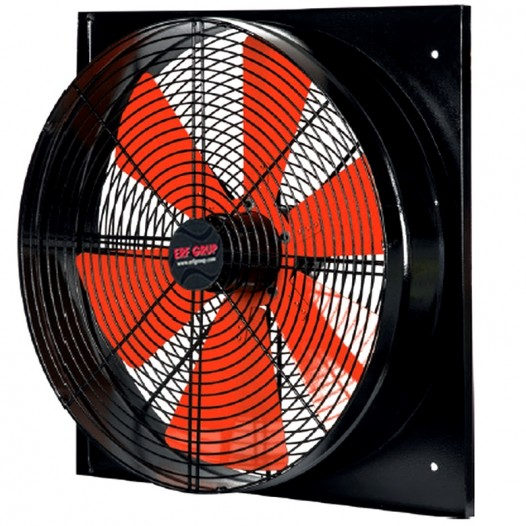

EDST / EDSM
SQUARE CASE AXIAL FAN
EDST / EDSM can be easily mounted on windows and walls, reaches high airflows at minimum sound level,
EDST / EDSM is used for ventilation of places such as factories, warehouses, shops, manufacturing shops, etc.
| Type / Code | Electric Motor | Max. Air Flow | ||
| Voltage | Power | Speed | ||
| (V) | (W) | RPM | m3 / h | |
| EKST-250-M-4K | 220 | 120 | 1400 | 1400 |
| EKST-250-M-2K | 220 | 180 | 2800 | 2200 |
| EKST-300-M-4K | 220 | 130 | 1400 | 3350 |
| EKST-350-M-4K | 220 | 160 | 1400 | 4550 |
| EKST-400-M-4K | 220 | 200 | 1400 | 5300 |
| EKST-450-M-4K | 220 | 220 | 1400 | 6900 |
| EKST-500-M-4K | 220 | 230 | 1400 | 7200 |
| EKST-600-M-4K | 220 | 560 | 1400 | 8500 |

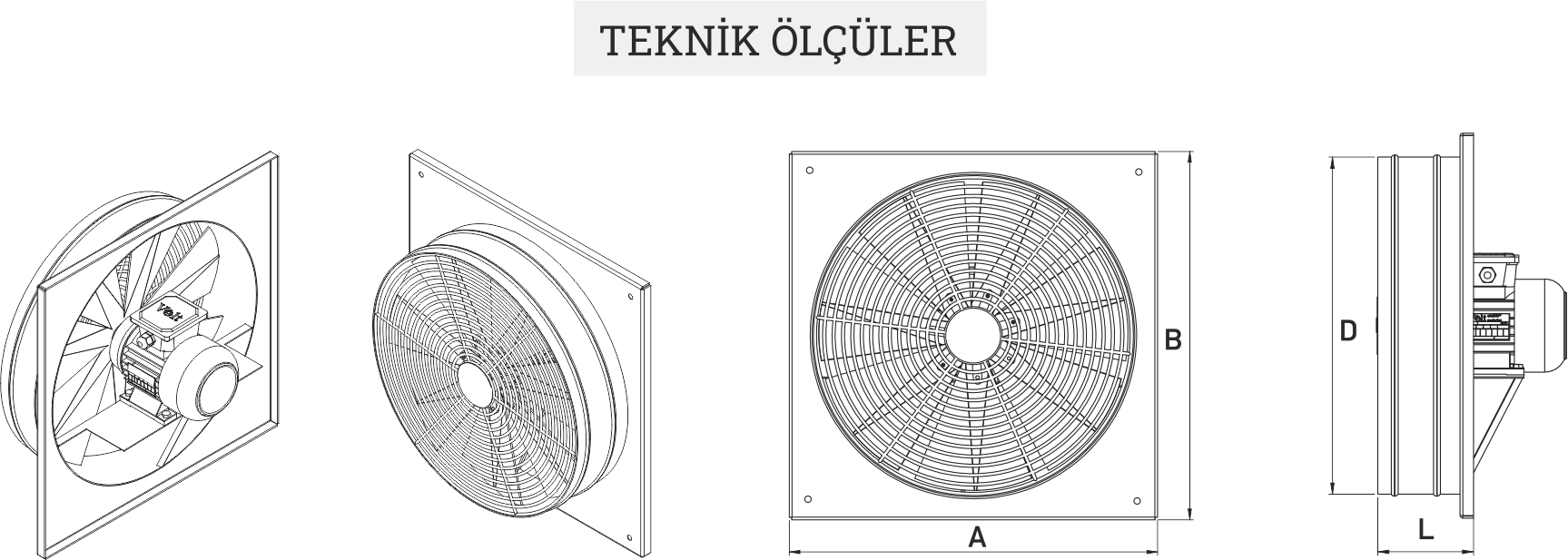

| Type/Code | Dimensions (mm) | ||
| AxB | D | L | |
| EKST-250-M-4K | 350 | 261 | 80 |
| EKST-250-M-2K | 350 | 261 | 80 |
| EKST-300-M-4K | 400 | 307 | 80 |
| EKST-350-M-4K | 450 | 365 | 90 |
| EKST-400-M-4K | 500 | 403 | 100 |
| EKST-450-M-4K | 550 | 462 | 105 |
| EKST-500-M-4K | 600 | 513 | 110 |
| EKST-600-M-4K | 720 | 612 | 145 |
