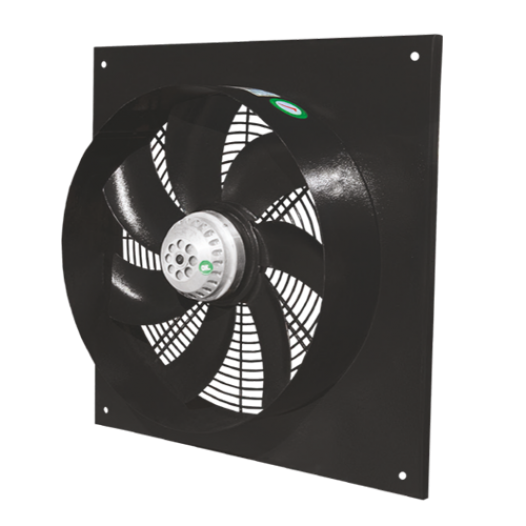

EKDR
SQUARE CASE WITH OUTER ROTOR AND DIRECT DRIVEN, IMPELLER PROTECTION
EKDR can be mounted on walls and windows, provide strong airflow.
They are economical fans with low sound levels and high efficiency.

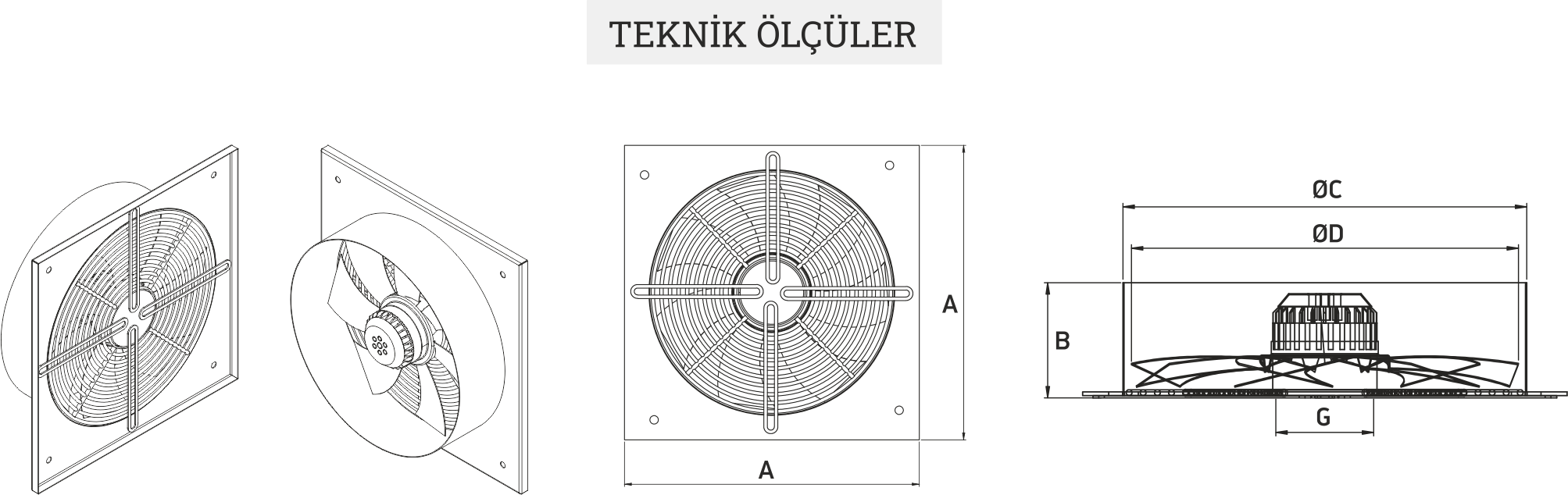

| Type / Code | Electric Motor | Air Flow | Dimensions ( mm ) | |||||
| Voltage | Power | Speed | ( Max ) | |||||
| ( V ) | ( W ) | ( RPM ) | ( m³/h ) | A | B | C | D | |
| AKDR-200-M-2K | 220 | 95 | 2.280 | 1.200 | 300 | 95 | 200 | 189 |
| AKDR-250-M-2K | 220 | 104 | 2.645 | 1.800 | 350 | 95 | 250 | 238 |
| AKDR-300-M-2K | 220 | 145 | 2.635 | 2.900 | 400 | 95 | 300 | 288 |
| AKDR-350-M-2K | 220 | 200 | 2.600 | 4.500 | 450 | 100 | 350 | 338 |
| AKDR-400-M-2K | 220 | 210 | 2.660 | 5.600 | 500 | 100 | 400 | 388 |
