HELK

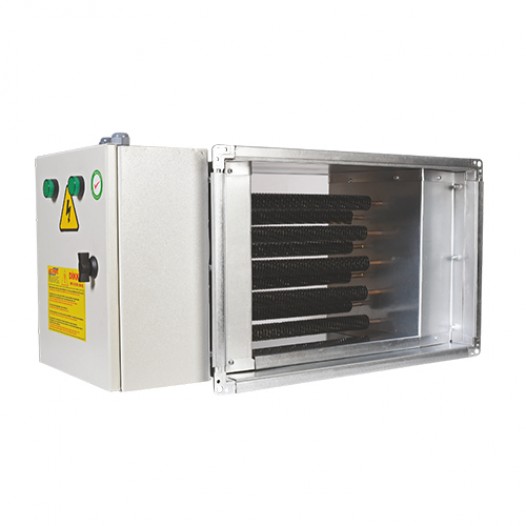

ELECTRIC DUCT TYPE HEATERS
HELK is generally used in heat recovery devices with the aim of preheating the fresh air that comes out by heating it up to the ambient temperature and blowing it into the environment. They are installed between the duct.

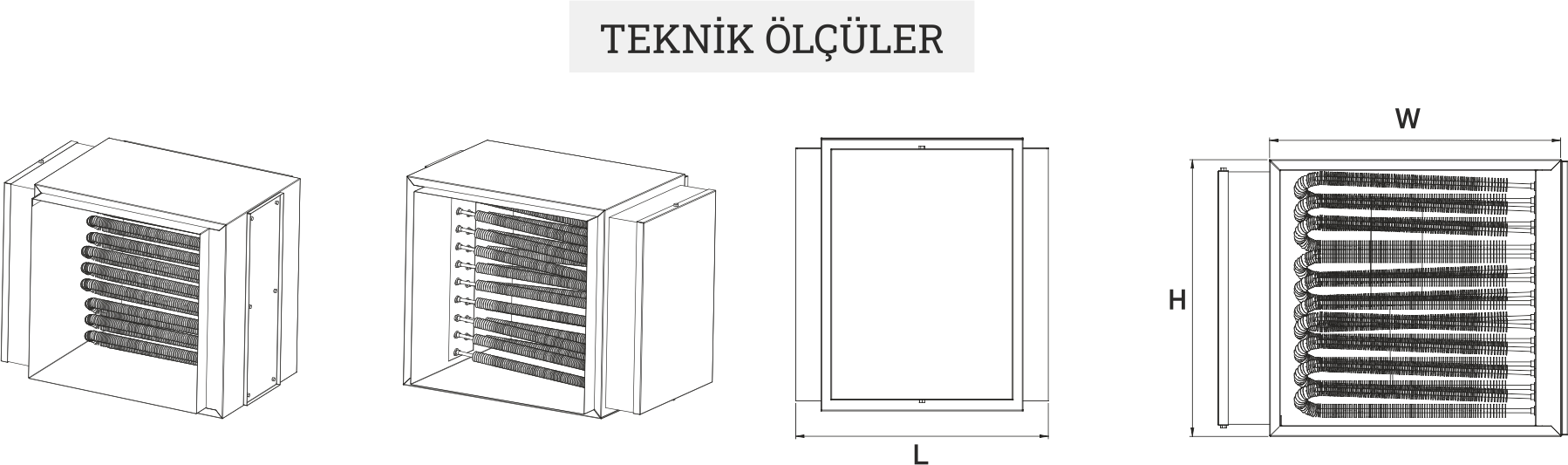

| Type / Code | Capacity | Air Flow | Stage Numbers | DIMENSIONS | ||||||||
| ( kW ) | ( m³/h ) | ( Ad ) | L (mm) | W (mm) | H (mm) | |||||||
| ELK-03-M-K1 | 3,00 | 1.000 | 1 | 350 | 500 | 150 | ||||||
| ELK-05-M-K1 | 5,00 | 1.500 | 1 | 350 | 500 | 250 | ||||||
| ELK-07-M-K2 | 7,00 | 2.000 | 2 | 350 | 500 | 300 | ||||||
| ELK-08-M-K2 | 8,00 | 2.500 | 2 | 350 | 500 | 400 | ||||||
| ELK-10-M-K3 | 10,0 | 3.000 | 3 | 350 | 700 | 300 | ||||||
| ELK-12-M-K3 | 12,0 | 3.500 | 3 | 350 | 700 | 350 | ||||||
| ELK-13-M-K3 | 13,0 | 4.000 | 3 | 350 | 700 | 400 | ||||||
| ELK-15-M-K3 | 15,0 | 4.500 | 3 | 350 | 700 | 450 | ||||||
