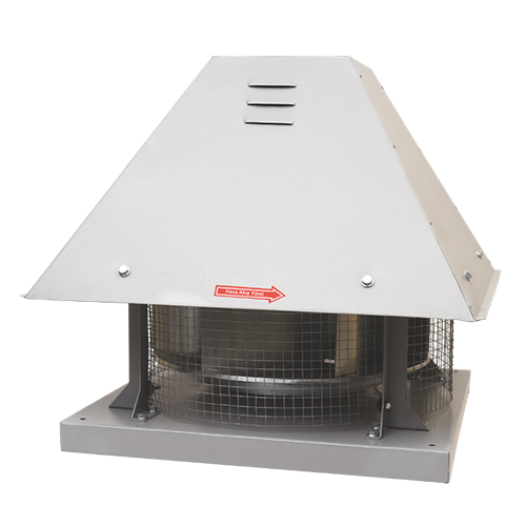

RADIAL HORIZONTAL FLASH ROOF FAN WITH PRISMATIC CAP
These fans, which are used in the ventilation of closed environments, can operate without problems with their high performance, they can operate even at high temperatures since the engine is outside of the air flow.

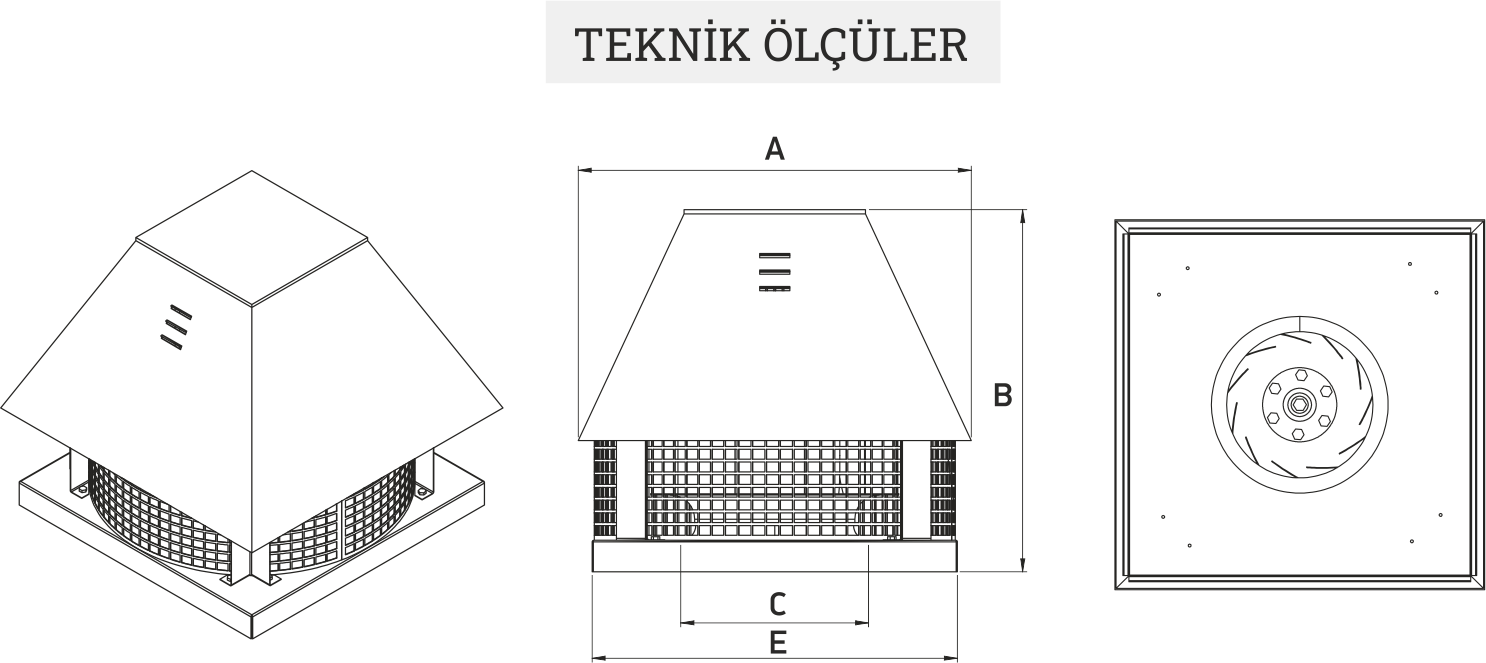

| ERCF | Roof Fan | DIMENSIONS ( mm ) | |||||||
| Type / Code | Electric Motor | Air Flow | |||||||
| Volt | Power | RPM | ( Max ) | ||||||
| ( V ) | ( HP ) | ( kW ) | ( d/d ) | ( m³/h ) | A | B | C | E | |
| ECRDA-280-0,50-T-4K | 380 | 0,50 | 0,37 | 1.380 | 1.000 | 524 | 505 | 165 | 404 |
| ECRDA-315-0,50-T-4K | 380 | 0,50 | 0,37 | 1.380 | 1.415 | 593 | 546 | 185 | 454 |
| ECRDA-355-0,50-T-4K | 380 | 0,50 | 0,37 | 1.380 | 2.200 | 655 | 546 | 234 | 500 |
| ECRDA-400-0,75-T-4K | 380 | 0,75 | 0,55 | 1.400 | 3.600 | 655 | 574 | 270 | 500 |
| ECRDA-450-1,50-T-4K | 380 | 1,50 | 1,10 | 1.410 | 4.400 | 730 | 568 | 282 | 580 |
| ECRDA-500-1,50-T-4K | 380 | 1,50 | 1,10 | 1.430 | 8.500 | 800 | 665 | 320 | 640 |
| ECRDA-560-2,00-T-4K | 380 | 2,00 | 1,50 | 1.435 | 10.000 | 856 | 723 | 360 | 700 |
| ECRDA-630-4,00-T-4K | 380 | 4,00 | 3,00 | 1.435 | 11.200 | 986 | 888 | 448 | 730 |
| ECRDA-710-5,50-T-4K | 380 | 5,50 | 4,00 | 1.455 | 12.800 | 1.080 | 958 | 450 | 780 |
| ECRDA-710-7,50-T-4K | 380 | 7,50 | 5,50 | 1.465 | 16.000 | 1.080 | 958 | 450 | 780 |
