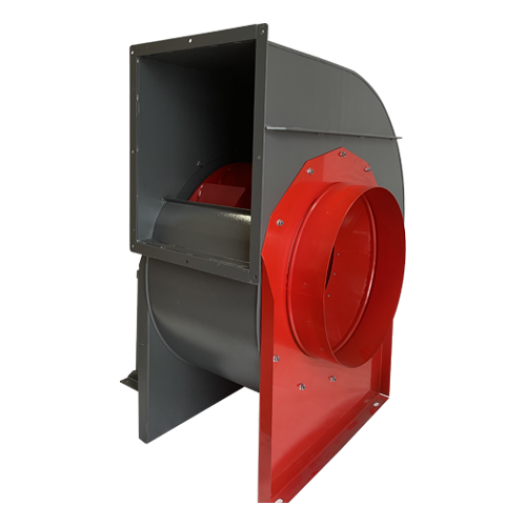

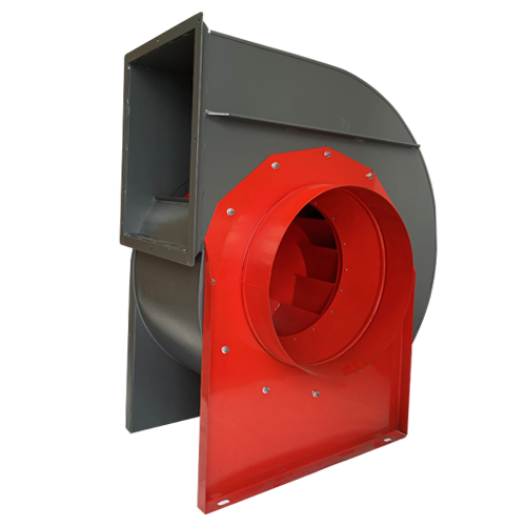

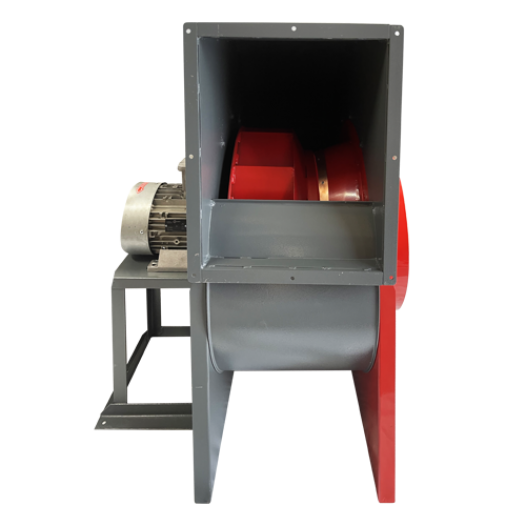

DIRECTLY COUPLED, SINGLE SUCTION, RADIAL FANS WITH BACKWARDS CURVE AND SPARSE BLADES
SBOY, designed for low and medium pressure systems, can be used in all kinds of facility ventilation. Due to the sparse blade structure, propeller cleaning is easy.

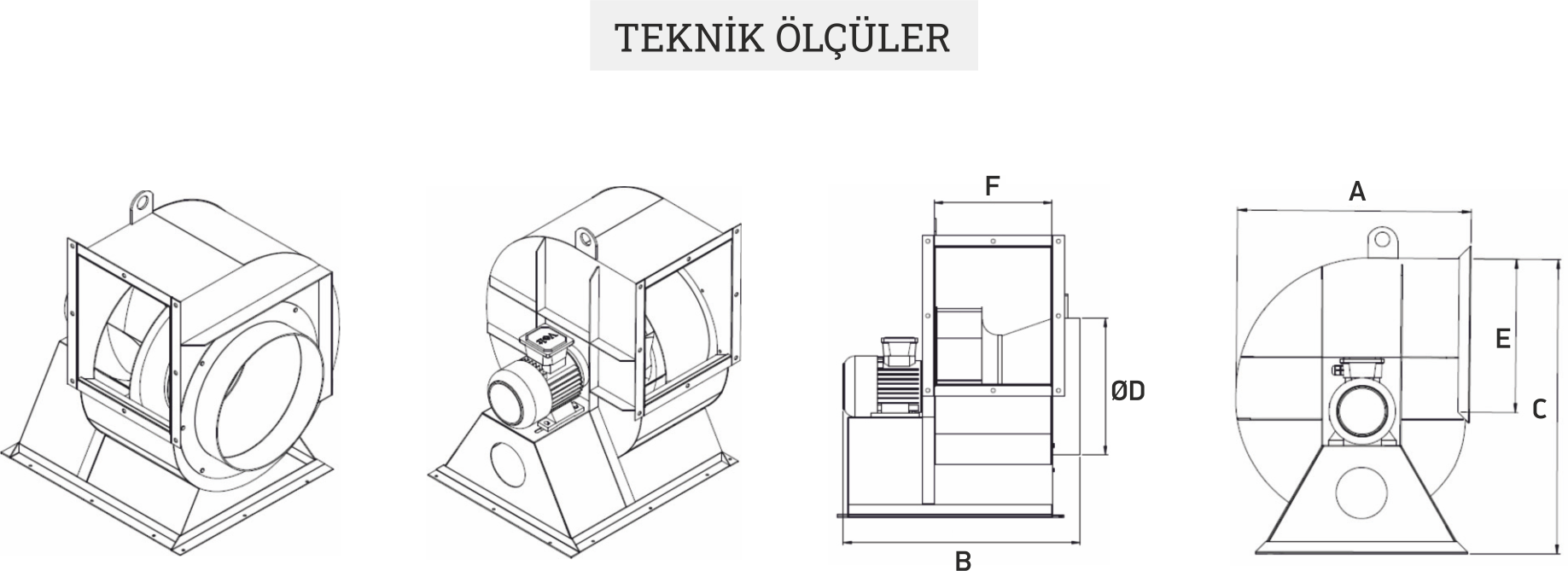

| Type / Code | Electric Motor | Air Flow | Pressure Loss | DIMENSIONS ( mm ) | ||||||||
| Volt | Power | RPM | ( Max. ) | ( Max. ) | ||||||||
| ( V ) | ( HP ) | ( kW ) | ( d/d ) | ( m³/h ) | ( Pa ) | A | B | C | D | E | F | |
| SBOY-0,50-T-4K | 380 | 0,50 | 0,37 | 1.380 | 3.000 | 400 | 500 | 500 | 610 | Ø 200 | 200 | 180 |
| SBOY-1,00-T-4K | 380 | 1,00 | 0,75 | 1.410 | 4.800 | 500 | 565 | 540 | 730 | Ø 300 | 260 | 200 |
| SBOY-1,50-T-4K | 380 | 1,50 | 1,10 | 1.430 | 6.000 | 600 | 655 | 590 | 805 | Ø 350 | 270 | 230 |
| SBOY-2,00-T-4K | 380 | 2,00 | 1,50 | 1.430 | 8.000 | 650 | 690 | 635 | 855 | Ø 350 | 300 | 250 |
| SBOY-3,00-T-4K | 380 | 3,00 | 2,20 | 1.435 | 9.000 | 700 | 785 | 715 | 990 | Ø 400 | 400 | 300 |
| SBOY-4,00-T-4K | 380 | 4,00 | 3,00 | 1.435 | 12.000 | 1.000 | 875 | 765 | 1.030 | Ø 450 | 450 | 350 |
| SBOY-5,50-T-4K | 380 | 5,50 | 4,00 | 1.455 | 15.000 | 1.100 | 920 | 835 | 1.080 | Ø 500 | 500 | 400 |
| SBOY-7,50-T-4K | 380 | 7,50 | 5,50 | 1.465 | 18.000 | 1.200 | 975 | 925 | 1.210 | Ø 600 | 600 | 450 |
| SBOY-10,0-T-4K | 380 | 10,0 | 7,50 | 1.465 | 21.000 | 1.500 | 1.035 | 965 | 1.220 | Ø 600 | 600 | 500 |
| SBOY-15,0-T-4K | 380 | 15,0 | 11,0 | 1.470 | 24.500 | 1.600 | 1.080 | 1.070 | 1.380 | Ø 700 | 700 | 550 |
| SBOY-20,0-T-4K | 380 | 20,0 | 15,0 | 1.470 | 27.000 | 1.800 | 1.200 | 1.120 | 1.485 | Ø 750 | 800 | 600 |
| SBOY-25,0-T-4K | 380 | 25,0 | 18,5 | 1.475 | 32.000 | 2.000 | 1.260 | 1.255 | 1.535 | Ø 800 | 800 | 600 |
