FORWARD CURVED AND DENSE BLADES, DOUBLE SUCTION, INTERNAL CELL RADIAL FANS

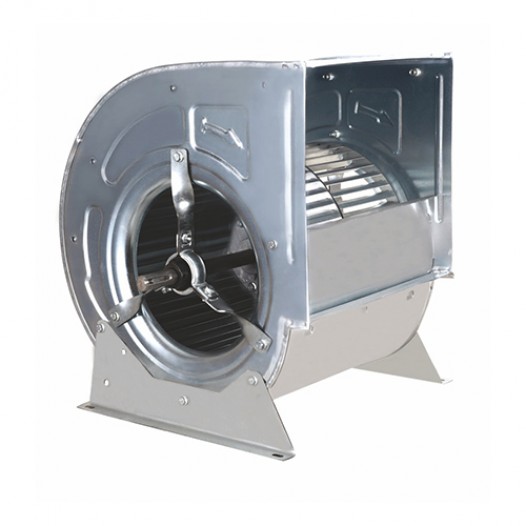

SCAT series fans are double inlet forward curved radial fans with dense blades.
It is produced as standard in different sizes. They can be used for suction and discharge applications in commercial and industrial HVAC systems with flow rates between 3,000 m3/h and 22,000 m3/h. They provide maximum efficiency with low energy.

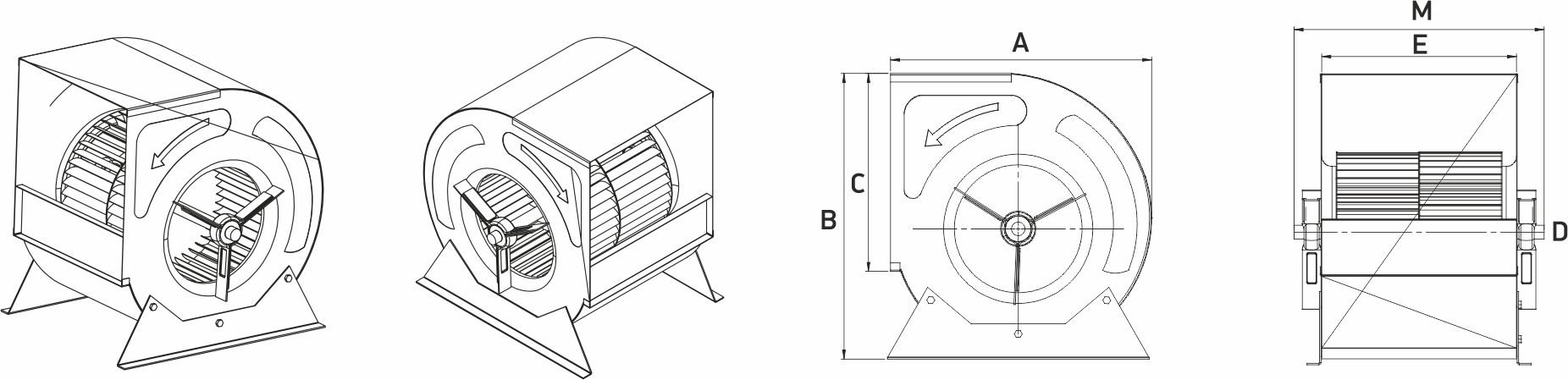

| SCAT | CENTRIFUGAL FANS (Low Pressure, Forward Curved and Dense Blades, Double Suction, Cell Internal Fan) | Dimensions ( mm ) | |||||||||
| Type / Code | Max. Working Points | Air Flow | Pressure Loss | ||||||||
| Volt | Power | RPM | ( Max. ) | ( Max. ) | |||||||
| ( V ) | ( kW ) | ( d/d ) | ( m³/h ) | ( Pa ) | |||||||
| SCAT-07/07 | 380 | 3,00 | 2.400 | 3.000 | 900 | 316 | 325 | 208 | Ø 20 | 232 | 340 |
| SCAT-09/09 | 380 | 3,00 | 2.000 | 5.000 | 900 | 380 | 387 | 262 | Ø 20 | 298 | 394 |
| SCAT-10/10 | 380 | 4,00 | 1.800 | 6.800 | 1.200 | 425 | 443 | 289 | Ø 20 | 331 | 420 |
| SCAT-12/12 | 380 | 5,50 | 1.400 | 9.800 | 1.000 | 491 | 521 | 341 | Ø 25 | 395 | 510 |
| SCAT-15/15 | 380 | 5,50 | 1.150 | 13.000 | 900 | 569 | 609 | 404 | Ø 25 | 471 | 608 |
| SCAT-18/18 | 380 | 7,50 | 1.000 | 20.000 | 1.000 | 684 | 739 | 478 | Ø 25 | 557 | 694 |
| SCAT-15/15-K | 380 | 7,50 | 1.150 | 15.000 | 900 | 569 | 609 | 404 | Ø 30 | 471 | 608 |
| SCAT-18/18-K | 380 | 11,0 | 1.000 | 22.000 | 1.000 | 684 | 739 | 478 | Ø 30 | 557 | 694 |
