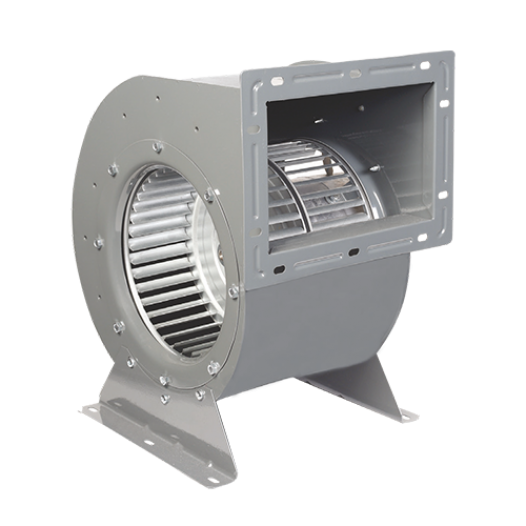

EXTERNAL MOTOR, FORWARD CURVED AND FAST BLADED DOUBLE SUCTION RADIAL FAN
These SCES fans with high operating performance appeal to a wide range of uses.

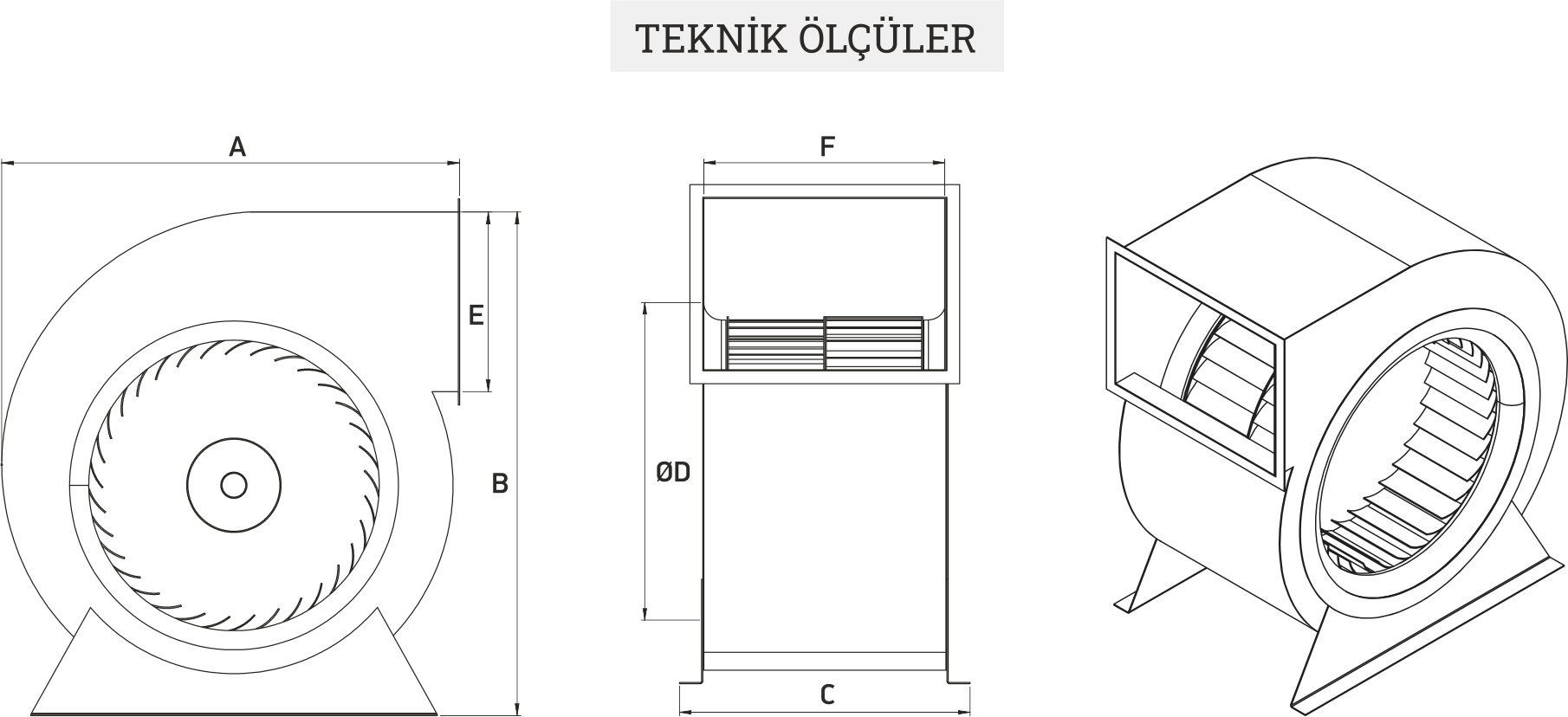

| SCES | CENTRIFUGAL FANS (FORWARD CURVED AND THICK BLADES, DIRECTLY COUPLED EXTERNAL Motor, DOUBLE SUCTION) | DIMENSIONS ( mm ) | |||||||
| Type / Code | Electric Motor | Air Flow | |||||||
| Volt | Power | RPM | ( Max ) | ||||||
| ( V ) | ( W ) | ( d/d ) | ( m³/h ) | A | B | D | E | F | |
| SCES-M-2K | 220 | 300 | 1.400 | 1.350 | 288 | 328 | 155 | 137 | 187 |
