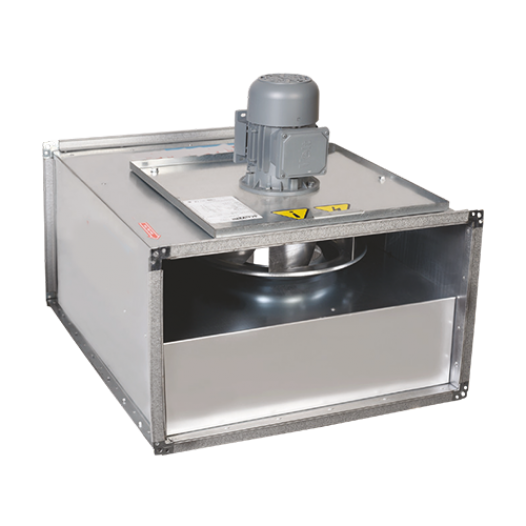

RECTANGULAR SECTION DUCT FAN WITH CURVED BACK EXTERNAL MOTOR WITH SQUARE BLADES
DTDR are duct fans that work silently thanks to their aerodynamic structure, they can be easily cleaned and maintained by opening the cover without being disassembled from where they are mounted. It does not take up space as it can be mounted between ducts, it is designed to meet medium and high volume ventilation needs in duct systems where the application area is limited.
| Type / Code | Electric Motor | Air Flow | CAPACITY TABLE ( m³/h ) | ÖLÇÜLER ( mm ) | |||||||||||||
| Volt | Power | RPM | ( Max ) | ||||||||||||||
| ( V ) | ( kW ) | ( d/d ) | ( m³/h ) | 0 Pa | 100 Pa | 200 Pa | 300 Pa | 400 Pa | 500 Pa | 600 Pa | A | B | C | F | G | H | |
| EDKF-R-315-T-4K | 380 | 0,25 | 1.440 | 3.000 | 3.000 | 2.400 | 1.800 | 1.200 | 400 |
|
| 350 | 600 | 760 | 650 | 400 | 550 |
| EDKF-R-355-T-4K | 380 | 0,37 | 1.420 | 3.500 | 3.500 | 2.800 | 2.250 | 1.550 | 875 | 20 |
| 350 | 600 | 760 | 650 | 400 | 550 |
| EDKF-R-400-T-4K | 380 | 0,55 | 1.470 | 4.700 | 4.700 | 3.800 | 3.200 | 2.400 | 1.600 | 500 |
| 400 | 700 | 800 | 750 | 450 | 630 |
| EDKF-R-450-T-4K | 380 | 1,10 | 1.450 | 6.000 | 6.000 | 5.300 | 4.750 | 4.000 | 3.200 | 2.250 | 1.000 | 400 | 700 | 800 | 750 | 450 | 630 |
| EDKF-R-500-T-4K | 380 | 1,50 | 1.400 | 8.400 | 8.400 | 6.900 | 6.150 | 5.400 | 4.500 | 3.600 | 2.700 | 500 | 800 | 920 | 850 | 560 | 780 |
| EDKF-R-560-T-4K | 380 | 2,20 | 1.400 | 10.500 | 10.500 | 8.900 | 8.250 | 7.500 | 6.600 | 5.300 | 4.900 | 500 | 1.000 | 1.050 | 1.060 | 560 | 780 |
