EDYP

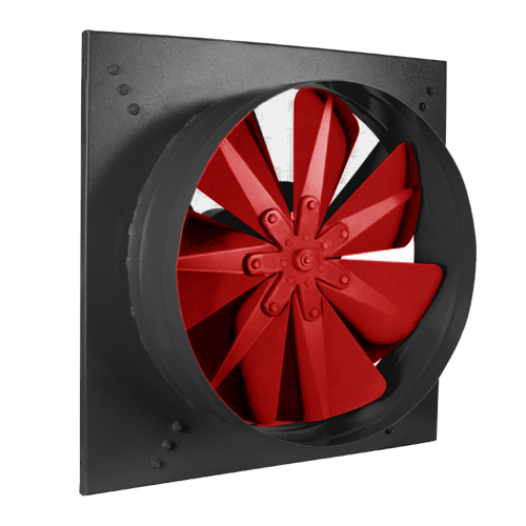

SQUARE CASE, 7 BLADES, METAL IMPELLER, AXIAL FAN
EDYP can be mounted on the wall and windows. It provides strong air flow.
| Type / Code | Electric Motor | Air Flow | DIMENSION( mm ) | ||||
| Voltage | Power | RPM | ( Max. ) | ||||
| ( V ) | ( HP ) | ( kW ) | ( d/d ) | ( m³/h ) | D | D1 | |
| ERF-ADYP-300-0,33-T-4K | 380 | 0,33 | 0,25 | 1.350 | 2.500 | 450 | 300 |
| ERF-ADYP-350-0,33-T-4K | 380 | 0,33 | 0,25 | 1.350 | 3.000 | 500 | 350 |
| ERF-ADYP-400-0,33-T-4K | 380 | 0,33 | 0,25 | 1.350 | 3.500 | 550 | 400 |
| ERF-ADYP-450-0,50-T-4K | 380 | 0,50 | 0,37 | 1.380 | 4.000 | 600 | 450 |
| ERF-ADYP-500-0,50-T-4K | 380 | 0,50 | 0,37 | 1.380 | 6.000 | 650 | 500 |
| ERF-ADYP-550-1,00-T-4K | 380 | 1,00 | 0,75 | 1.410 | 7.500 | 700 | 550 |
| ERF-ADYP-600-1,00-T-4K | 380 | 1,00 | 0,75 | 1.410 | 9.500 | 750 | 600 |
| ERF-ADYP-650-1,50-T-4K | 380 | 1,50 | 1,10 | 1.430 | 11.000 | 800 | 650 |
| ERF-ADYP-700-2,00-T-4K | 380 | 2,00 | 1,50 | 1.430 | 12.000 | 850 | 700 |
| ERF-ADYP-750-3,00-T-4K | 380 | 3,00 | 2,20 | 1.435 | 14.000 | 900 | 750 |
| ERF-ADYP-800-4,00-T-4K | 380 | 4,00 | 3,00 | 1.435 | 18.000 | 950 | 800 |
