EKMP

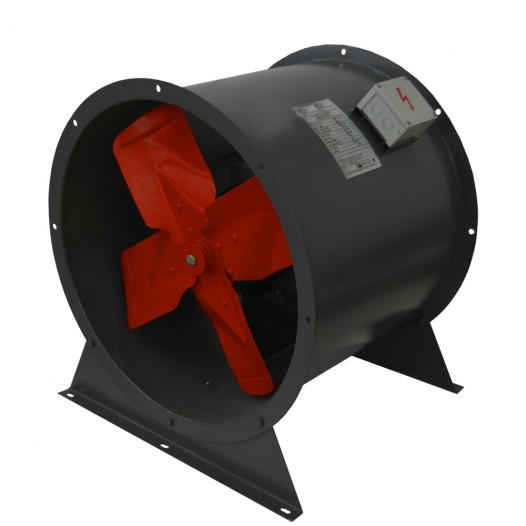

4 BLADE, TUBE, AXIAL, METAL IMPELLER FAN
EKMP, provides high air flow rates and metal impellers
They can be produced as resistant to high temperatures according to demand.
| Type / Code | Electric Motor | Air Flow | |||
| Voltage | Power | Speed | ( Max ) | ||
| ( V ) | ( HP ) | ( kW ) | ( rpm) | ( m³/h ) | |
| EKMP-300-0,50-T-4K | 380 | 0,50 | 0,37 | 1.380 | 3.500 |
| EKMP-350-0,50-T-4K | 380 | 0,50 | 0,37 | 1.380 | 4.000 |
| EKMP-400-0,50-T-4K | 380 | 0,50 | 0,37 | 1.380 | 5.000 |
| EKMP-450-0,50-T-4K | 380 | 0,50 | 0,37 | 1.380 | 6.000 |
| EKMP-500-1,00-T-4K | 380 | 1,00 | 0,75 | 1.410 | 8.000 |
| EKMP-560-1,00-T-4K | 380 | 1,00 | 0,75 | 1.410 | 10.000 |
| EKMP-630-2,00-T-4K | 380 | 2,00 | 1,50 | 1.430 | 14.000 |
| EKMP-710-3,00-T-4K | 380 | 3,00 | 2,20 | 1.435 | 16.000 |
| EKMP-800-5,50-T-4K | 380 | 5,50 | 4,00 | 1.455 | 25.000 |
| EKMP-900-7,50-T-4K | 380 | 7,50 | 5,50 | 1.465 | 35.000 |
| EKMP-1000-7,50-T-6K | 380 | 7,50 | 5,50 | 960 | 40.000 |
| EKMP-1100-7,50-T-6K | 380 | 7,50 | 5,50 | 960 | 45.000 |
| EKMP-1200-10,0-T-6K | 380 | 10,0 | 7,50 | 960 | 50.000 |

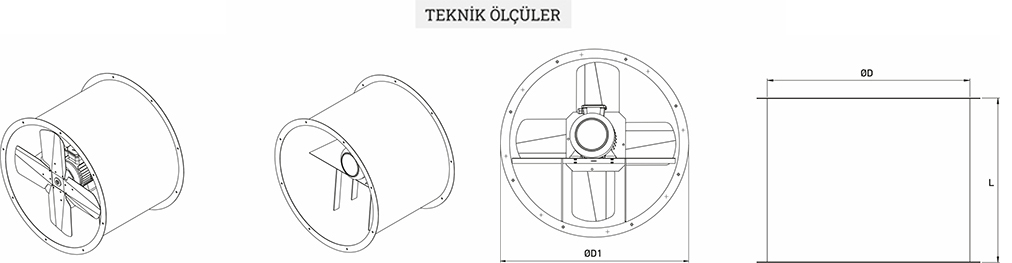

| Type / Code | DIMENSIONS ( mm ) | ||
| D | D1 | L | |
| EKMP-300-0,50-T-4K | 300 | 370 | 300 |
| EKMP-350-0,50-T-4K | 350 | 420 | 325 |
| EKMP-400-0,50-T-4K | 400 | 470 | 350 |
| EKMP-450-0,50-T-4K | 450 | 520 | 400 |
| EKMP-500-1,00-T-4K | 500 | 570 | 400 |
| EKMP-560-1,00-T-4K | 560 | 630 | 450 |
| EKMP-630-2,00-T-4K | 630 | 700 | 475 |
| EKMP-710-3,00-T-4K | 710 | 780 | 525 |
| EKMP-800-5,50-T-4K | 800 | 870 | 550 |
| EKMP-900-7,50-T-4K | 900 | 970 | 600 |
| EKMP-1000-7,50-T-6K | 1.000 | 1.100 | 600 |
| EKMP-1100-7,50-T-6K | 1.100 | 1.200 | 700 |
| EKMP-1200-10,0-T-6K | 1.200 | 1.300 | 14+AM35141 |
