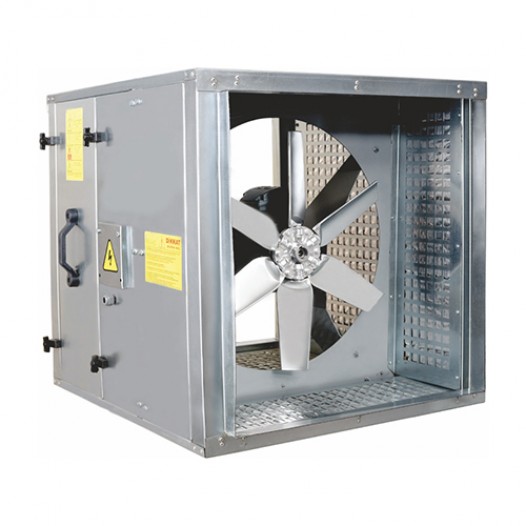

ERF-HKAF
ALUMINUM IMPELLER CABINET AXIAL FAN
The impellers of the ERF-HKAF can meet high air flow rates and high pressure losses, are made of aluminum casting, and they provide the chance to change the flow and pressure thanks to their adjustable blade angles, the cabinet is insulated with 20mm thick foil rock wool, works silently, 200-300-400 °C according to demand 120 It can be produced with a motor resistant to minute temperature.

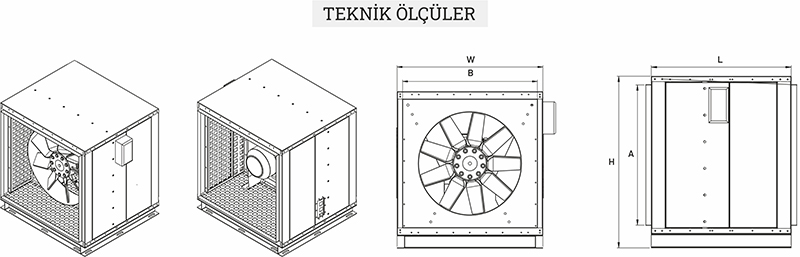

| Type / Code | Electric Motor | Air Flow | Impeller | Tube | Cabinet Dimension | |||||
| Voltage | Power | Speed | Max. | Dimension | Dimension | Length | Weight | Height | ||
| ( V ) | ( HP ) | ( kW ) | ( RPM ) | ( m³/h ) | D ( mm ) | D1 ( mm ) | L (mm) | W (mm) | H (mm) | |
| ERF-HKAF-300-0,50-T-4K | 380 | 0,50 | 0,37 | 1.380 | 3.000 | Ø 300 | Ø 370 | 500 | 600 | 600 |
| ERF-HKAF-350-0,50-T-4K | 380 | 0,50 | 0,37 | 1.380 | 4.000 | Ø 350 | Ø 420 | 550 | 650 | 650 |
| ERF-HKAF-400-0,75-T-4K | 380 | 0,75 | 0,55 | 1.380 | 5.000 | Ø 400 | Ø 470 | 550 | 700 | 700 |
| ERF-HKAF-450-0,75-T-4K | 380 | 0,75 | 0,55 | 1.380 | 6.750 | Ø 450 | Ø 520 | 600 | 750 | 750 |
| ERF-HKAF-500-1,00-T-4K | 380 | 1,00 | 0,75 | 1.410 | 9.600 | Ø 500 | Ø 570 | 600 | 800 | 800 |
| ERF-HKAF-560-1,50-T-4K | 380 | 1,50 | 1,10 | 1.410 | 12.350 | Ø 560 | Ø 630 | 650 | 850 | 850 |
| ERF-HKAF-630-2,00-T-4K | 380 | 2,00 | 1,50 | 1.430 | 14.500 | Ø 630 | Ø 700 | 700 | 950 | 950 |
| ERF-HKAF-710-4,00-T-4K | 380 | 4,00 | 3,00 | 1.435 | 23.500 | Ø 710 | Ø 780 | 750 | 1.000 | 1.000 |
| ERF-HKAF-800-7,50-T-4K | 380 | 7,50 | 5,50 | 1.435 | 34.000 | Ø 800 | Ø 870 | 800 | 1.100 | 1.100 |
| ERF-HKAF-900-10,0-T-4K | 380 | 10,0 | 7,50 | 1.465 | 48.000 | Ø 900 | Ø 970 | 850 | 1.200 | 1.200 |
| ERF-HKAF-1000-15,0-T-4K | 380 | 15,0 | 11,0 | 1.470 | 53.000 | Ø 1.000 | Ø 1.100 | 900 | 1.300 | 1.300 |
| ERF-HKAF-1100-20,0-T-4K | 380 | 20,0 | 15,0 | 1.470 | 77.000 | Ø 1.100 | Ø 1.200 | 1.000 | 1.400 | 1.400 |
| ERF-HKAF-1200-25,0-T-4K | 380 | 25,0 | 18,5 | 1.470 | 95.000 | Ø 1.200 | Ø 1.300 | 1.000 | 1.500 | 1.500 |
