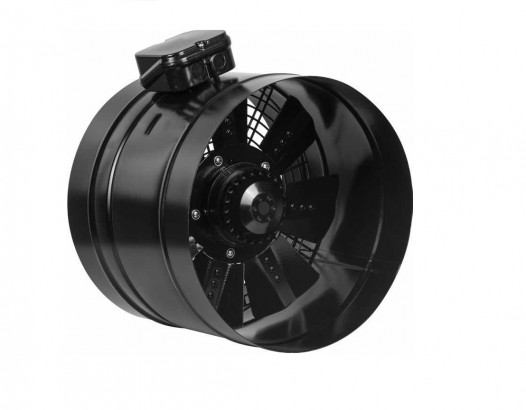

EYBT
OUTER ROTOR MOTOR, METAL , CIRCULAR CASE, PIPE TYPE FAN
EYBT can be mounted between the ducts, provide strong air induction.
They are economy fans with low sound levels and high efficiency.
| Type / Code | Electric Motor | Air Flow | DIMENSIONS ( mm ) | |||
| Voltage | Power | Speed | ( Max ) | |||
| ( V ) | ( kW ) | ( RPM ) | ( m³/h ) | D | L | |
| ERF-AYBT-200-M-2K | 220 | 95 | 2.280 | 1.200 | 200 | 235 |
| ERF-AYBT-250-M-2K | 220 | 104 | 2.645 | 1.800 | 250 | 235 |
| ERF-AYBT-300-M-2K | 220 | 145 | 2.635 | 2.900 | 300 | 235 |
| ERF-AYBT-350-M-2K | 220 | 200 | 2.600 | 4.500 | 350 | 235 |
| ERF-AYBT-400-M-2K | 220 | 210 | 2.660 | 5.600 | 400 | 235 |
