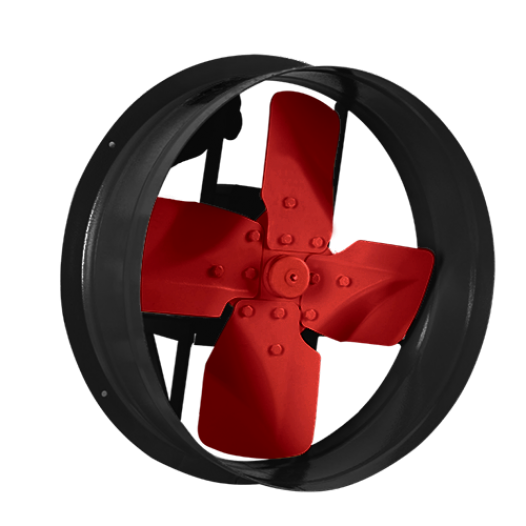

EYMP
4-BLADE, METAL IMPELLER, AXIAL FAN
EYMP can be mounted on walls and windows, provide strong air flow, are economical fans with low noise level and high efficiency.

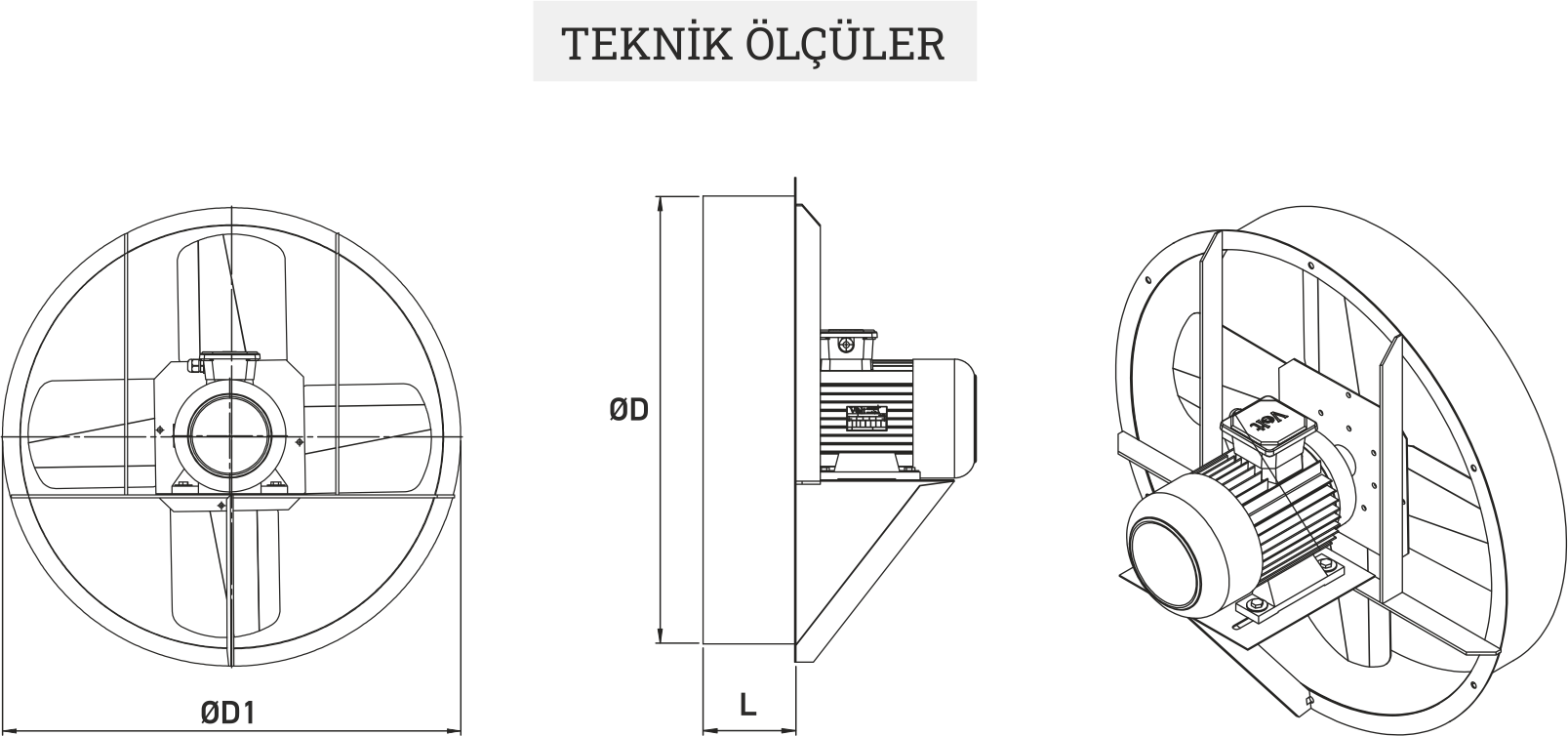

| Type / Code | Electric Motor | Air Flow | DIMENSIONS ( mm ) | ||||
| Voltage | Power | Speed | ( Max ) | ||||
| ( V ) | ( HP ) | ( kW ) | ( RPM ) | ( m³/h ) | D | D1 | |
| EYMP-300-0,50-T-4K | 380 | 0,50 | 0,37 | 1.380 | 3.500 | 300 | 370 |
| EYMP-350-0,50-T-4K | 380 | 0,50 | 0,37 | 1.380 | 4.000 | 350 | 420 |
| EYMP-400-0,50-T-4K | 380 | 0,50 | 0,37 | 1.380 | 5.000 | 400 | 470 |
| EYMP-450-0,50-T-4K | 380 | 0,50 | 0,37 | 1.380 | 6.000 | 450 | 520 |
| EYMP-500-1,00-T-4K | 380 | 1,00 | 0,75 | 1.410 | 8.000 | 500 | 570 |
| EYMP-550-1,00-T-4K | 380 | 1,00 | 0,75 | 1.410 | 10.000 | 550 | 620 |
| EYMP-600-1,50-T-4K | 380 | 1,50 | 1,10 | 1.430 | 12.000 | 600 | 670 |
| EYMP-650-2,00-T-4K | 380 | 2,00 | 1,50 | 1.430 | 14.000 | 650 | 720 |
| EYMP-700-3,00-T-4K | 380 | 3,00 | 2,20 | 1.435 | 16.000 | 700 | 770 |
| EYMP-750-4,00-T-4K | 380 | 4,00 | 3,00 | 1.435 | 20.000 | 750 | 820 |
| EYMP-800-5,50-T-4K | 380 | 5,50 | 4,00 | 1.455 | 25.000 | 800 | 870 |
| EYMP-900-7,50-T-4K | 380 | 7,50 | 5,50 | 1.465 | 35.000 | 900 | 970 |
| EYMP-1000-7,50-T-6K | 380 | 7,50 | 5,50 | 960 | 40.000 | 1.000 | 1.070 |
| EYMP-1100-7,50-T-6K | 380 | 7,50 | 5,50 | 960 | 45.000 | 1.100 | 1.170 |
| EYMP-1200-10,0-T-6K | 380 | 10,0 | 7,50 | 960 | 50.000 | 1.200 | 1.270 |
