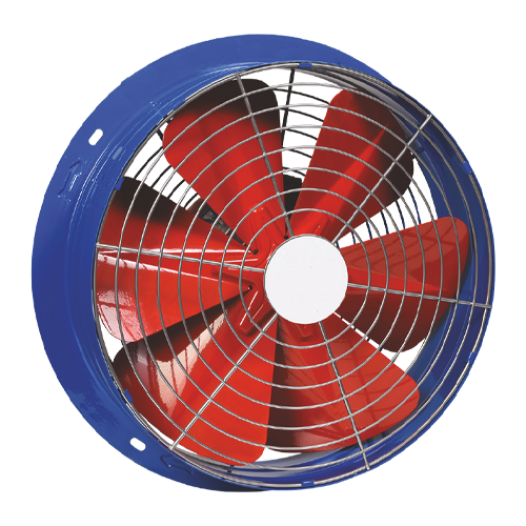

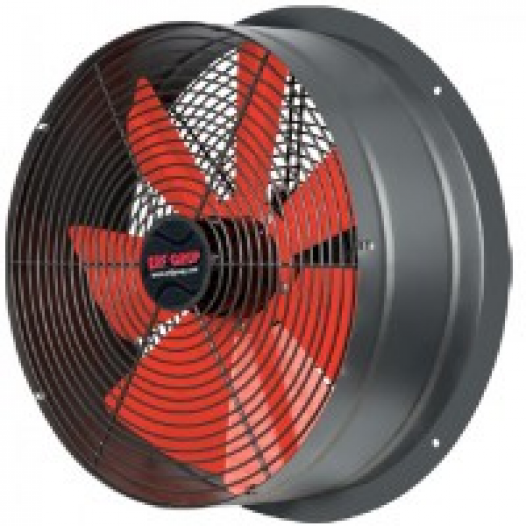

EYST / EYSM
ROUND AXIAL FAN
EYST / EYSM can be easily mounted on the wall and window, it reaches high air flow rates at minimum sound levels.
EYST / EYSM is used for ventilation of factories, warehouses, paint shops, workshops, etc.

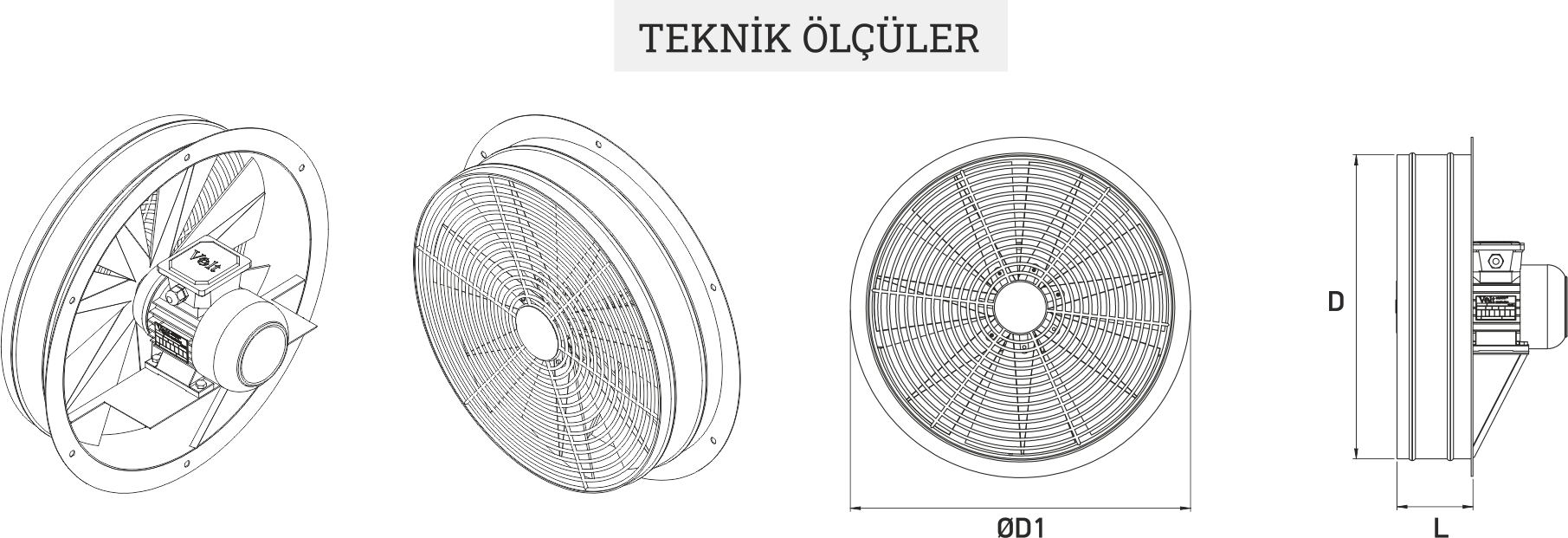

| Type / Code | Electric Motor | Air Flow | DIMENSIONS ( mm ) | ||||
| Voltage | Power | Speed | ( Max. ) | ||||
| ( V ) | ( W ) | ( RPM ) | ( m³/h ) | D | D1 | L | |
| EST-250-M-4K | 220 | 120 | 1.400 | 1.400 | 251 | 304 | 114 |
| EST-250-M-2K | 220 | 180 | 2.800 | 2.200 | 251 | 304 | 114 |
| EST-300-M-4K | 220 | 130 | 1.400 | 3.350 | 325 | 390 | 114 |
| EST-350-M-4K | 220 | 160 | 1.400 | 4.550 | 374 | 435 | 114 |
| EST-400-M-4K | 220 | 200 | 1.400 | 5.300 | 427 | 485 | 114 |
| EST-450-M-4K | 220 | 220 | 1.400 | 6.900 | 470 | 546 | 114 |
| EST-500-M-4K | 220 | 230 | 1.400 | 7.200 | 518 | 590 | 125 |
| EST-600-M-4K | 220 | 560 | 1.400 | 8.500 | 610 | 674 | 180 |
