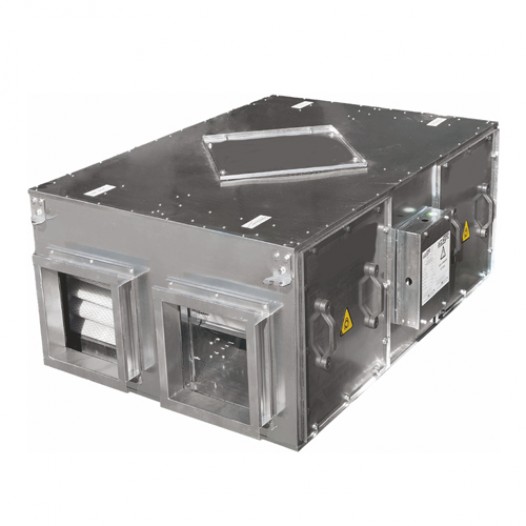

HEXR
DOUBLE SUCTION, RADIAL FAN, ALUMINUM HEAT EXCHANGER, CROSS-CURRENT, HEAT RECOVERY DEVICES
Heat recovery devices, which can be used in the comfort ventilation of all kinds of facilities, provide fresh air to the environment while exhausting the ambient air. It enables the fresh air to be preheated / cooled by making use of the heat energy of the exhaust air thrown out. Thus, it prevents negative effects on the ambient temperature.
| EGK | HEAT RECOVERY DEVICES | DIMENSIONS ( mm ) | |||||||
| Tip / Kod | Electric Motor | Air Flow Max. | L | W | H | A | B | ||
| Volt | Power | RPM |
|
|
|
|
| ||
| ( V ) | ( W ) | ( d/d ) | ( m³/h ) |
|
|
|
|
| |
| EGK-15-M-4K | 220 | 2x150 | 1.350 | 1.500 | 980 | 800 | 400 | 230 | 210 |
| EGK-25-M-4K | 220 | 2x370 | 1.350 | 2.500 | 1.350 | 985 | 510 | 290 | 260 |
| EGK-35-M-4K | 220 | 2x550 | 1.400 | 3.500 | 1.700 | 1.180 | 580 | 330 | 290 |
| EGK-45-M-6K | 220 | 2x550 | 900 | 4.500 | 1.800 | 1.230 | 650 | 400 | 330 |
