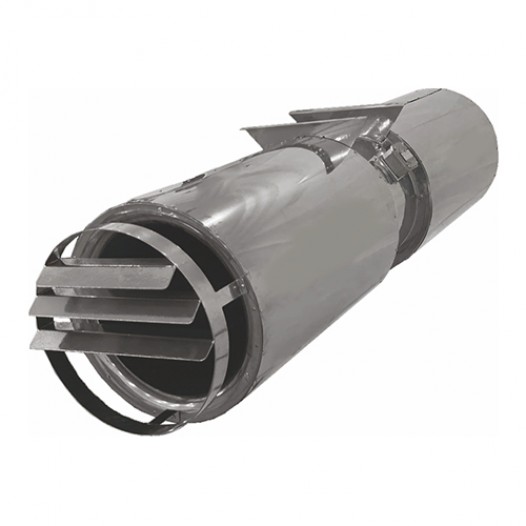

DIRECT DRIVEN JET FAN WITH DUAL AXIAL IMPELLER
JET FANS are used to transmit unwanted gases in the environment to the exhaust points by providing high air movement without using air ducts in large volume places such as parking garages and tunnels. They can operate continuously for 2 hours at 300 and 400 °C.
*They can be manufactured bi-directionally or unidirectionally, depending on the need.

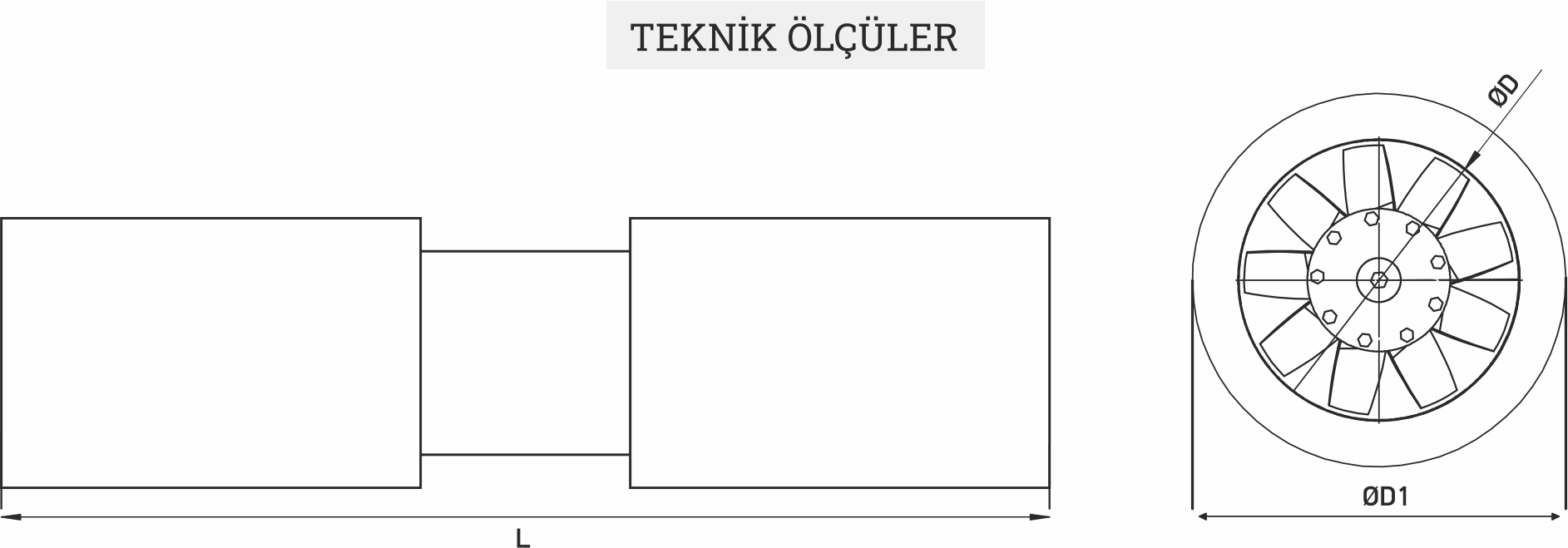

| JKAF | AXIAL FANS | DIMENSIONS ( mm ) | |||||||
| Type / Code | Electric Motor | Air Flow | Impulse | ||||||
| Volt | Power | Speed | ( Max ) | Power | |||||
| ( V ) | ( kW ) | ( RPM ) | ( m³/h ) | (N) | D | L | W | H | |
| JKAF-315-F2-2K | 380 | 1,10 | 2.900 | 4.500 | 24 | 315 | 2.000 |
|
|
| JKAF-315-F2-2/4K | 380 | 1,00 / 0,25 | 2900 / 1410 | 4500/2250 | 24 / 6 | 315 | 2.000 |
|
|
| JKAF-355-F2-2K | 380 | 1,50 | 2.900 | 6.500 | 40 | 355 | 2.000 |
|
|
| JKAF-355-F2-2/4K | 380 | 1,30 / 0,33 | 2900 / 1430 | 6500/3250 | 40 / 10 | 355 | 2.000 |
|
|
| JKAF-400-F2-2K | 380 | 2,20 | 2.900 | 9.000 | 60 | 400 | 2.000 |
|
|
| JKAF-400-F2-2/4K | 380 | 2,00 / 0,50 | 2900 / 1430 | 9000/4500 | 60 / 15 | 400 | 2.000 |
|
|
