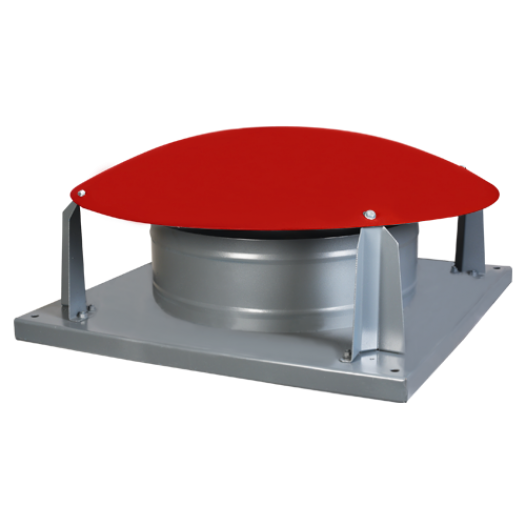

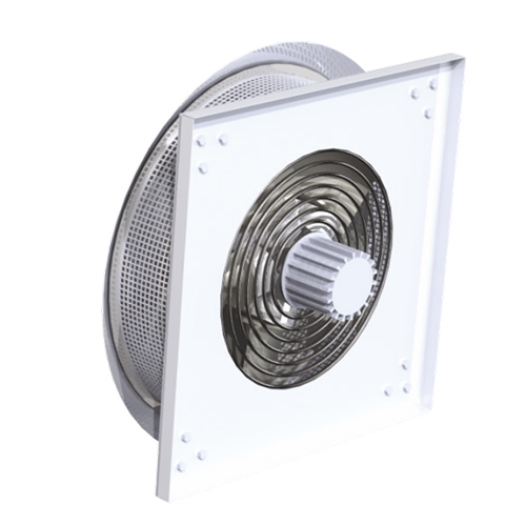

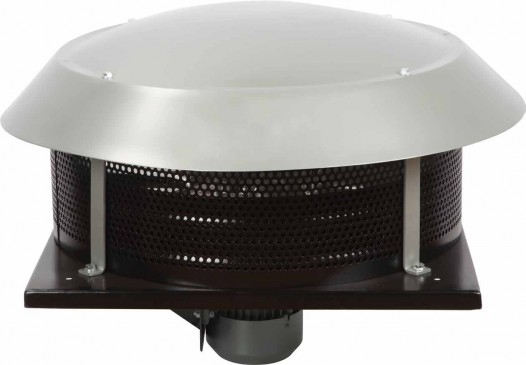

AXIAL PROPELL, HORIZONTAL THROW, DIRECT COUPLED MOTOR DOME CAP
These fans, which are used in the ventilation of closed environments, can operate without any problems with their high performance. Thanks to their axial propeller, they can be used both for air suction in the environment and for the purpose of supplying fresh air in the environment.

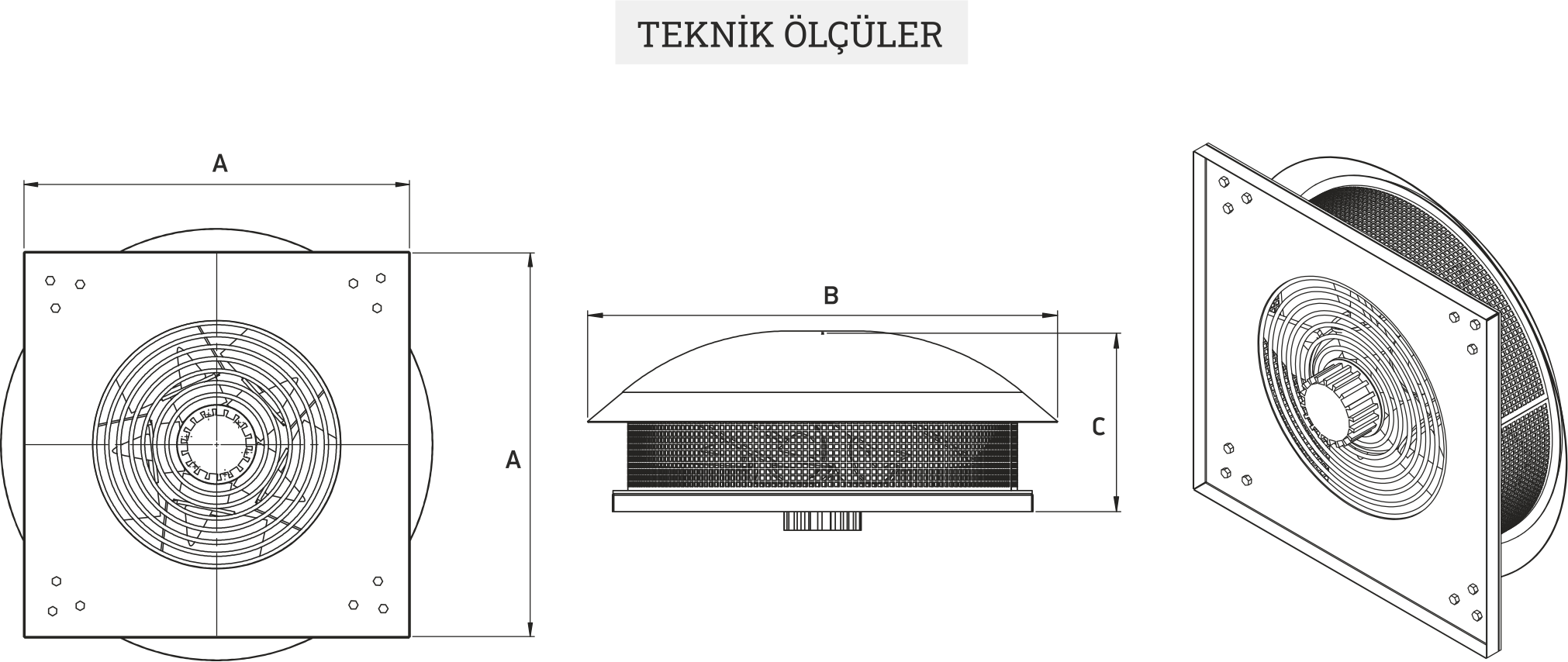

| ECAD | Roof Fans | Dimensions ( mm ) | ||||||
| Type / Code | Electric Motor | Air Flow | ||||||
| Volt | Power | RPM | ( Max ) | |||||
| ( V ) | ( HP ) | ( kW ) | ( d/d ) | ( m³/h ) | A | B | C | |
| ECAD-300-T-4K | 380 |
| 0,20 | 1.430 | 1.800 | 560 | 685 | 340 |
| ECAD-350-T-4K | 380 |
| 0,25 | 1.360 | 2.600 | 560 | 685 | 340 |
| ECAD-400-T-4K | 380 |
| 0,29 | 1.400 | 4.500 | 630 | 824 | 470 |
| ECAD-450-T-4K | 380 |
| 0,33 | 1.375 | 6.500 | 710 | 824 | 480 |
| ECAD-500-T-4K | 380 |
| 0,43 | 1.350 | 8.500 | 740 | 824 | 480 |
| ECAD-560-1,00-T-4K | 380 | 1,00 | 0,75 | 1.450 | 10.400 | 800 | 1.150 | 710 |
| ECAD-630-1,50-T-4K | 380 | 1,50 | 1,10 | 1.450 | 14.000 | 850 | 1.150 | 710 |
| ECAD-710-2,00-T-4K | 380 | 2,00 | 1,50 | 1.450 | 18.000 | 850 | 1.150 | 800 |
| ECAD-800-3,00-T-4K | 380 | 3,00 | 2,20 | 1.450 | 26.000 | 1.000 | 1.450 | 900 |
| ECAD-900-4,00-T-4K | 380 | 4,00 | 3,00 | 1.450 | 32.000 | 1.000 | 1.450 | 900 |
| ECAD-1000-7,50-T-4K | 380 | 7,50 | 5,50 | 1.400 | 42.000 | 1.100 | 1.450 | 950 |
