PRODUCT DESCRIPTION

USAGE AREAS

* In cooling of direct current motors
* In plastic injection machines
* In resistance machines.
* In the bread oven
* It is used in many areas of the manufacturing industry
* In burning solid and liquid fuels in boilers, in the heat industry for the purpose of providing secondary air in a controlled manner.
* In the ventilation of closed environments
* In industrial machinery belonging to the jewelery sector
* In the textile industry
* In mines and mushroom farms
* In the combustion air supply of gas and diesel burners
* In humid and humid environments
* In the greenhouse industry
* In chicken coops
* Used in many areas of the manufacturing industry





Capacity Dimensions Table:

PRODUCT CODE

KW

HP

V

D/D

AIR FLOW

MM/SS

KG

ERF MİNİ 100-40

0.18

1/4

380/220

2900

320/300

20

7

ERF 2 TY 160-70

0.37

1/2

380/220

2900

1300/1250

30

9

ERF 2 YB 160-90

0.37

1/2

380/220

2900

1900/1800

40

11

ERF 2 RS 160-70

0.25

1/3

380/220

2900

1600/1500

30

8

ERF 3 RS 18*-70

0.55

3/4

380/220

2900

2000/1900

40

10

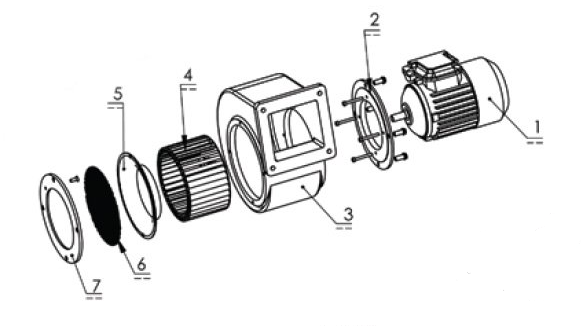

  1. Motor
  2. Motor Flange
  3. Centrifugal Body
  4. Radial Fan
  5. Aluminum Suction Grid
  6. Suction Sheet
  7. Suction Flange

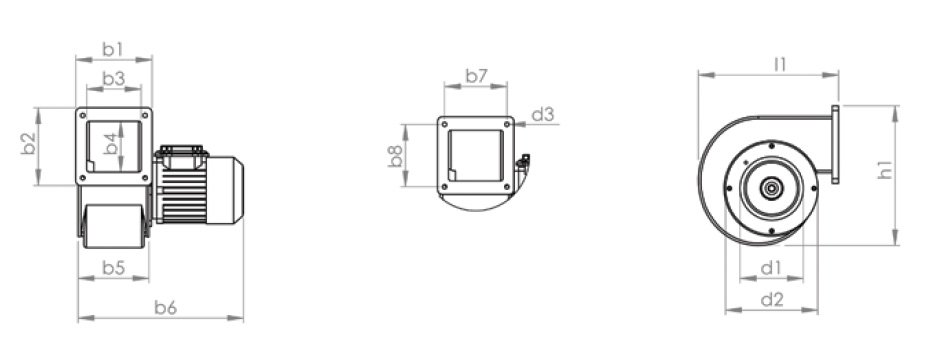

TYPE

b1

b2

b3

b4

b5

b6

b7

b8

I1

h1

d1

d2

d3

ERF Mini

107

107

70

70

87

270

88

88

108

175

100

123

7.5

ERF 2 TY

140

133

93

90

117

320

115

105

235

265

145

171

7.5

ERF 2 YB

145

154

103

108

141

345

122

128

290

290

150

196

9

ERF 2 RS

120

130

82

90

115

300

95

107

255

275

150

196

7.5

ERF 3 RS

124

143

89

101

125

320

106

118

275

290

175

217

7.5
